ACdelco

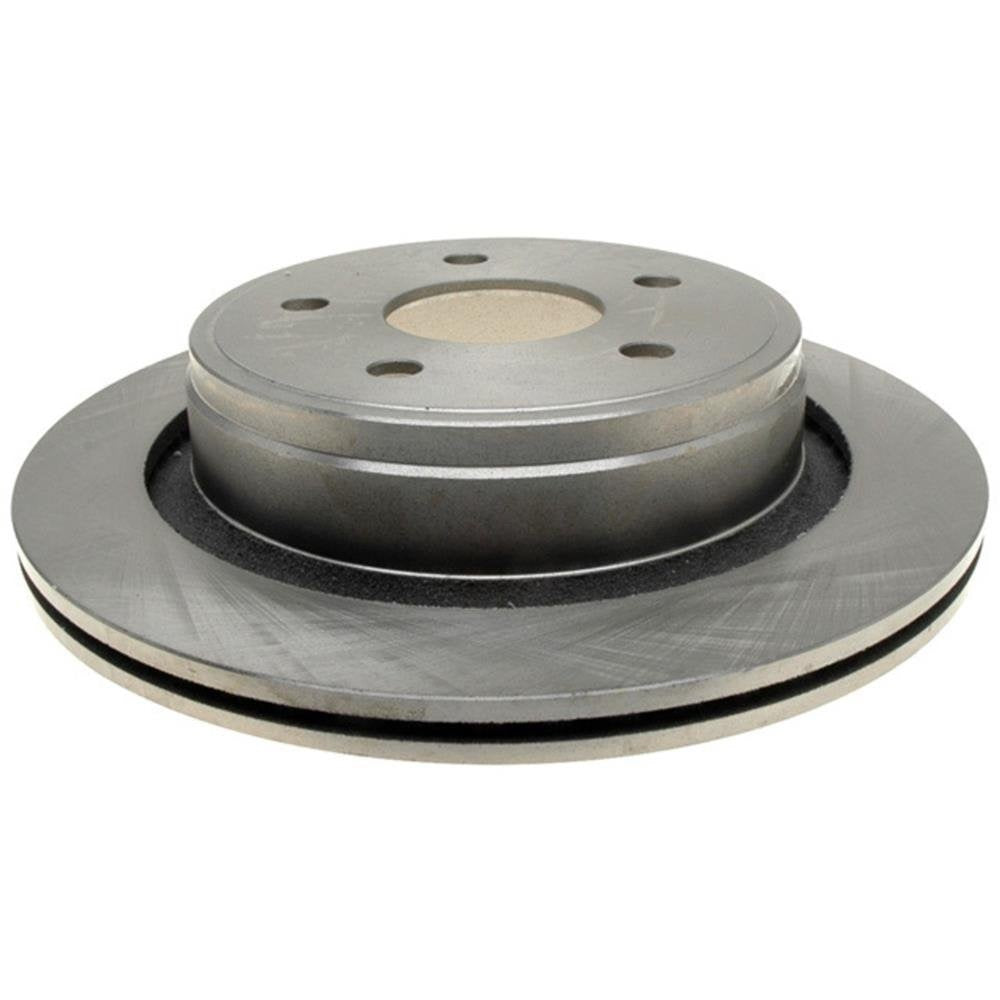

Rear brake disc ACD Std RAM 1500 02+

SKU: ACD-18A1428A
Pre-Order
- if available from the US
€131,43

Product details

  • SKU ACD-18A1428A

Share it!

Description Reviews

Dodge Ram rear brake disc 02+:

ACDelco Silver (Advantage) uncoated brake discs provide reliable braking performance. Application-specific vane configurations provide safety and performance, minimize noise and vibration, and maximize airflow to keep your rotor cool. They also feature a non-directional ground finish that minimizes thickness variation and extends the life of the pads. These reliable rotors offer quality at an economical price.

  • Manufactured from multiple alloys for optimal heat dissipation and performance
  • Mill balanced for good rotor function; no additional weights needed
  • Quality validated for the right metallurgy and the right brake plate thickness
  • Non-directional brake surface finish for consistent braking
  • Rounded radius for extra strength

  • Suitable for the Dodge Ram 1500 from year 2002
  • Brand ACdelco
  • Quality is equal to the original Mopar brake discs
  • Excellent to combine with our range of Hawk brake pads for example HB513Y. 610
  • Our advice is always to replace the brake discs left and right, due to the direction sensitivity
  • Always install new pads on a new brake disc

Diameter of bolt circle (IN) 5.5
Bolt circle diameter (MM) 139,7
Center bore Diameter (IN) 3.1 inches
Center bore Diameter (MM) 78.7 mm
Center hole Diameter (IN) 3.09
Center hole Diameter (MM) 78,5
Conventional or drum-in-hat type rotor Drum-in-hat
Directional or non-directional braking surface No
Disc finishing Non-directional
Height (IN) 2.8
Height (MM) 71.1
Length (IN) 14.1
Material Cast iron
Diameter of mounting bolt hole circle (IN) 5.5
Mounting bolt hole circle Diameter (MM) 139,7
Mounting bolt hole Diameter (IN) 0,667
Mounting bolt hole Diameter (MM) 16.95
Nominal thickness (IN) 0,865
Nominal thickness (MM) 21.95
Outer diameter (IN) 13.86
Outer diameter (MM) 352.05
Total height (IN) 2.835
Overall height (MM) 72
Rust-resistant coating No
Slotted No
Fixed or vented rotor Ventilate
Surface Type Soft
Weight (lb) 24.2
Width (IN) 14.1

OEM / Interchange Numbers: 19261757
