Differential Ring and Pinion set 9.25 / 3.92
Regular price
€628,23
Couldn't load pickup availability
Product details
- SKU DAN10004209

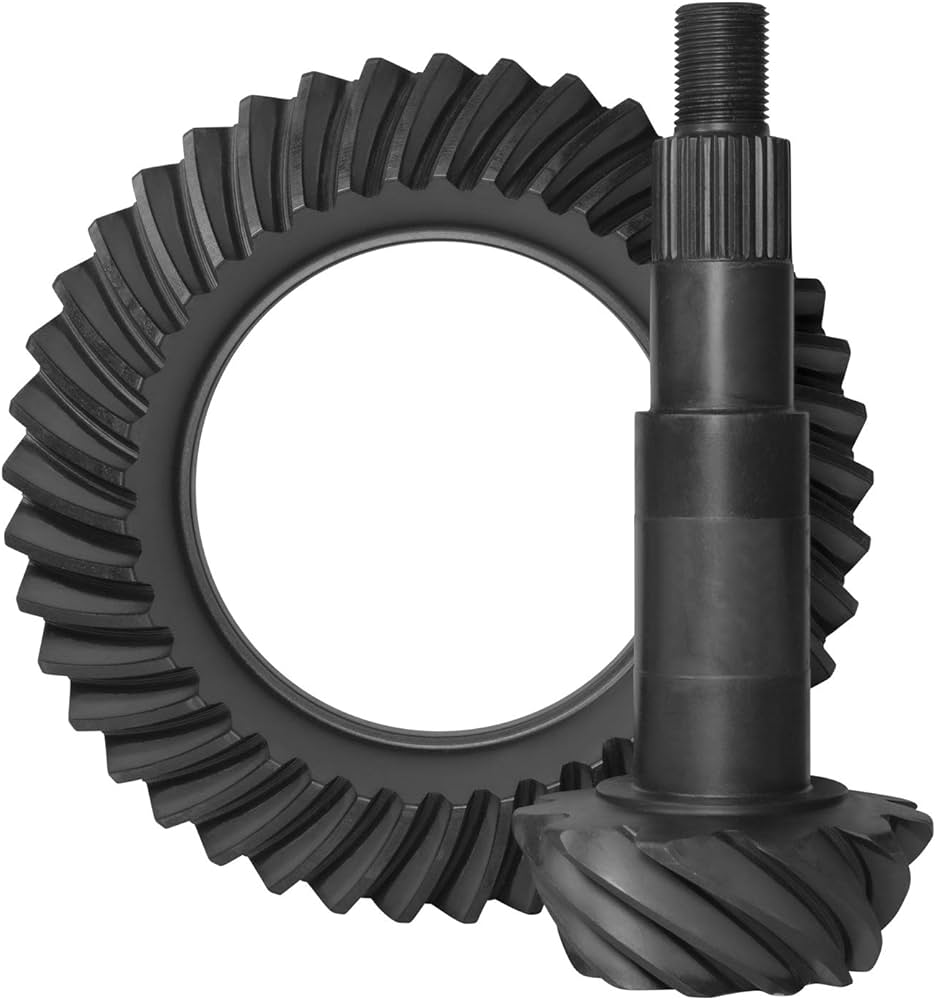

Differential Ring and Pinion - Chrysler 9.25 Axle - Dual Drilled - 3.92 Ratio
Count on SVL ring and pinion gearing to deliver the ideal blend of coverage, performance, and value for your vehicle. SVL gearing is engineered for all makes and ratios, and the processes that go into manufacturing SVL gearing make all the difference.
| Specification | Value |
|---|---|
| Brand | SVL |
| Axle Model | Chrysler 9.25 |
| Axle Type | Semi Floating |
| Carrier Breaks | None |
| Country of Origin | India |
| Cover Bolt Quantity | 12 |
| Gross Weight | 19.8 lb |
| Installation Kit Included | No |
| Condition | New |
| Vehicle Location | Rear Axle |
| Gear Ratio | 3.92:1 |
| Ring Gear Included | Yes |
| Ring Gear Diameter | 9.250 in |
| Ring Gear Rotation | Standard |
| Ring Gear Teeth | 47 |
| Ring Gear Bolt Quantity | 12 |
| Ring Gear Bolt Thread | 7/16"-20 (.438-20) |
| Pinion Gear Included | Yes |
| Pinion Gear Teeth | 12 |
| Pinion Nut Included | No |
| Pinion Shaft Diameter | 1.875 in |
| Pinion Spline Count | 29 |
| Tariff Code (HS) | 8483908080 |
| Compatible Model Years | 1974–2015 |
