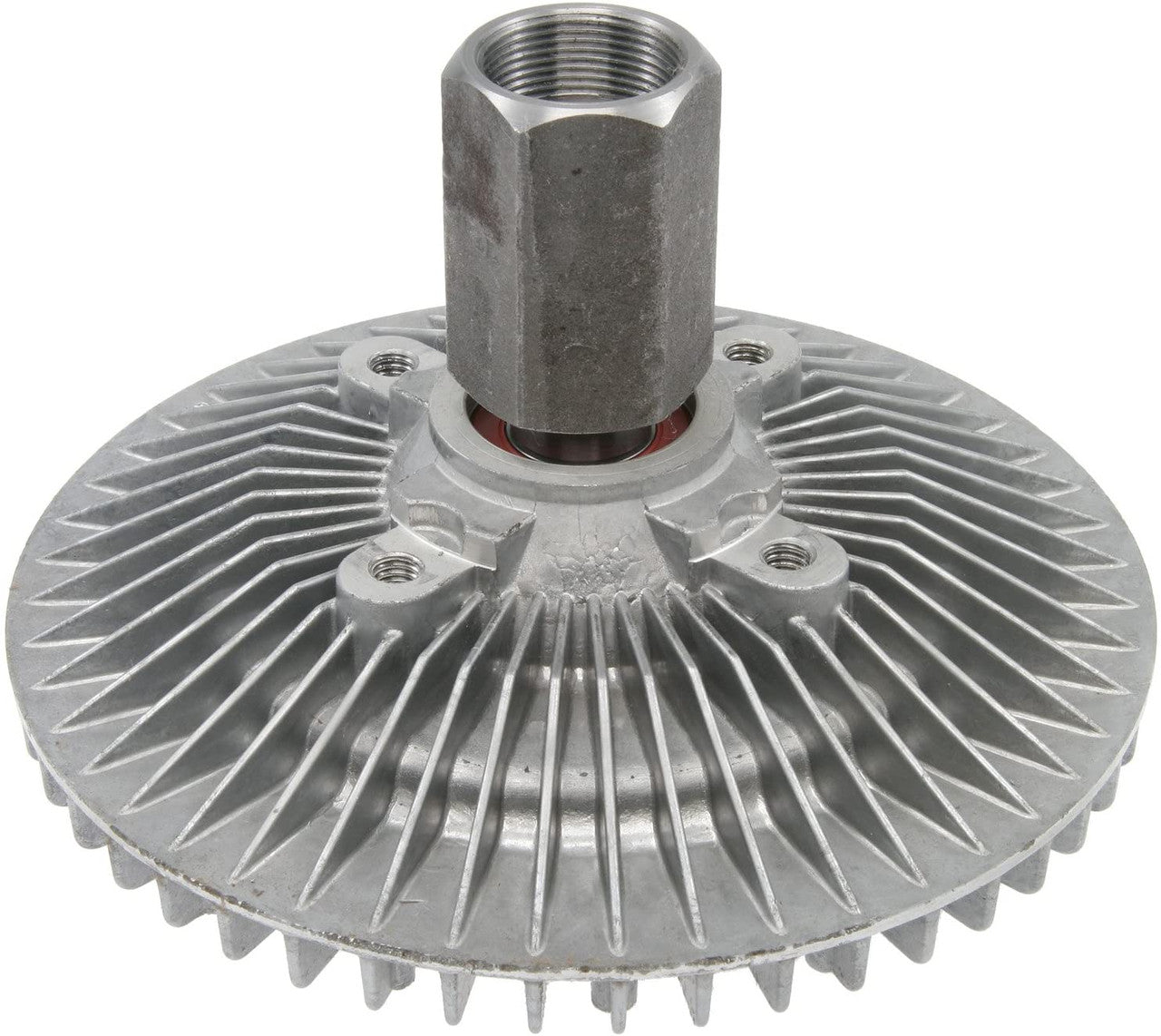

Visco clutch fan 5.7 HEMI RAM 1500 02/08
Regular price
€108,14
Couldn't load pickup availability
Product details
- SKU 2740
Share it!
Visco clutch fan 5.7 HEMI RAM 1500 02/08
- Turns the fan 70-90% of shaft speed when turned on for more cooling
- The fan rotates 25-35% of the shaft speed when turned off
- Used with fans with a deeper pitch (2-1 / 2 " of pitch)
- Land and groove design with a work surface up to 27 square inches
- Recognizable by the ribbed aluminum front plate and thermal spring on the front
| Bolt Quantity | 4 |
| Bolt thread | 5/16-18 hole |
| Maximum coupling diameter (IN) | 7.2 |
| Link type | C - heavily executed |
| Color | Raw aluminium in colour |
| Description | Fan couplings |
| Distance from coupling to mounting flange (IN) | 2.7 |
| Type of drawing | C |
| Duty classification | Heavy |
| Electronic coupling- | Not electronic |
| Fan Bolt circle (IN) | 3.25 |
| Fan Attachment Dia. (IN) | 2.62 |
| Fan Attachment Dia.(MM) | 66.6 |
| Material | Aluminum |
| Meets / exceeds OEM- | Okay |
| Mount Dia. (IN) | 1.44 (36 mm) HEX |
| Mount Dia.(MM) | 36 HEX |
| Mounting material- | Not included |
| Number of mounting holes | 4 |
| Mounting type | Hex |
| New or Reman | New |
| OE replacement- | Okay |
| Total height (IN) | 4.42 |
| Overall height (MM) | 112.3 |
| Assessed performance- | Okay |
| Pilot depth (IN) | 0,7 |
| pilot Dia. (IN) | M30x1. 500 |
| Rotation | REV |
| Style | Performed heavily |
| Type | Thermal |
| DODGE | RAM 1500 PICKUP | 2002-2008 |
