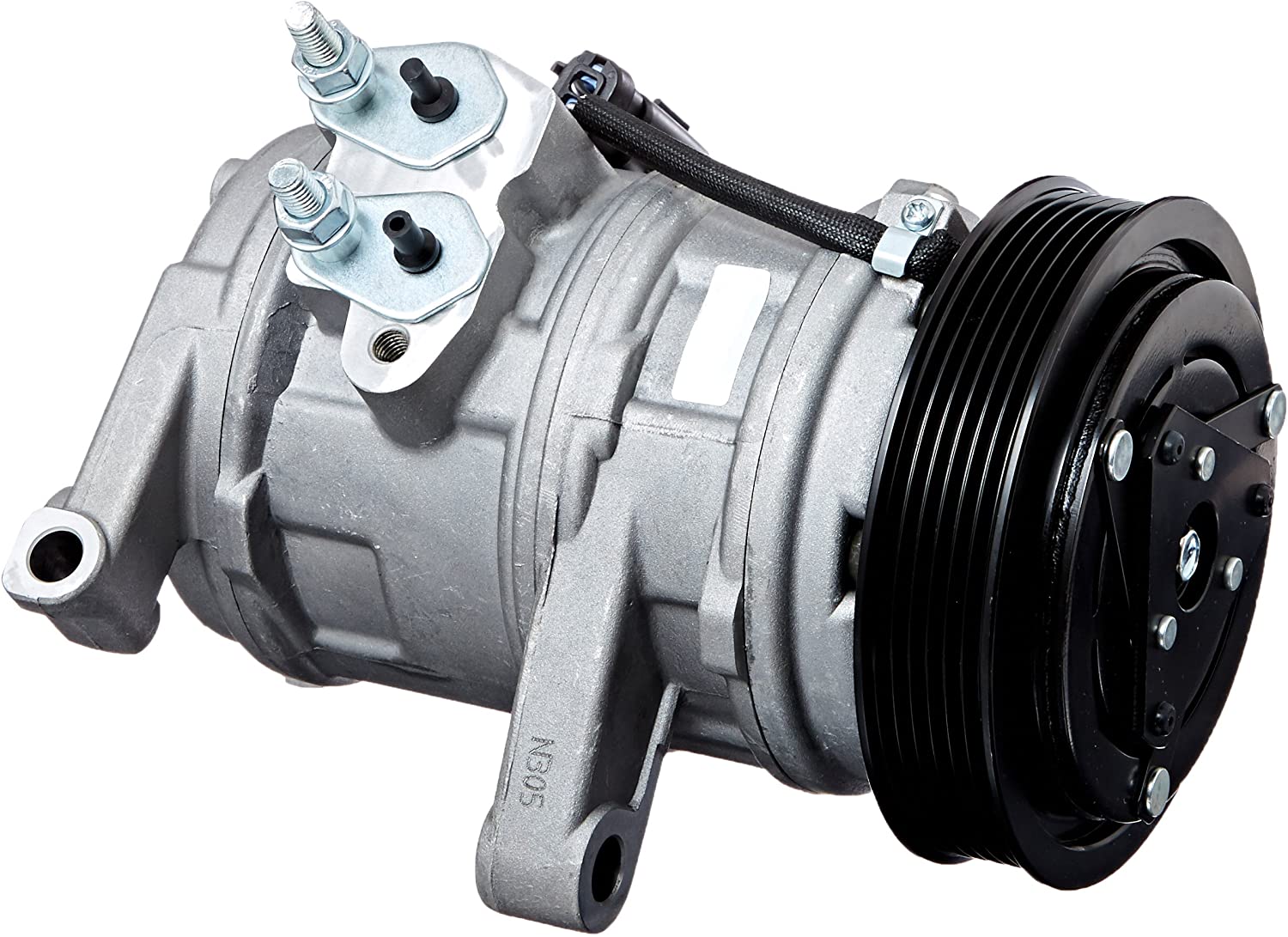

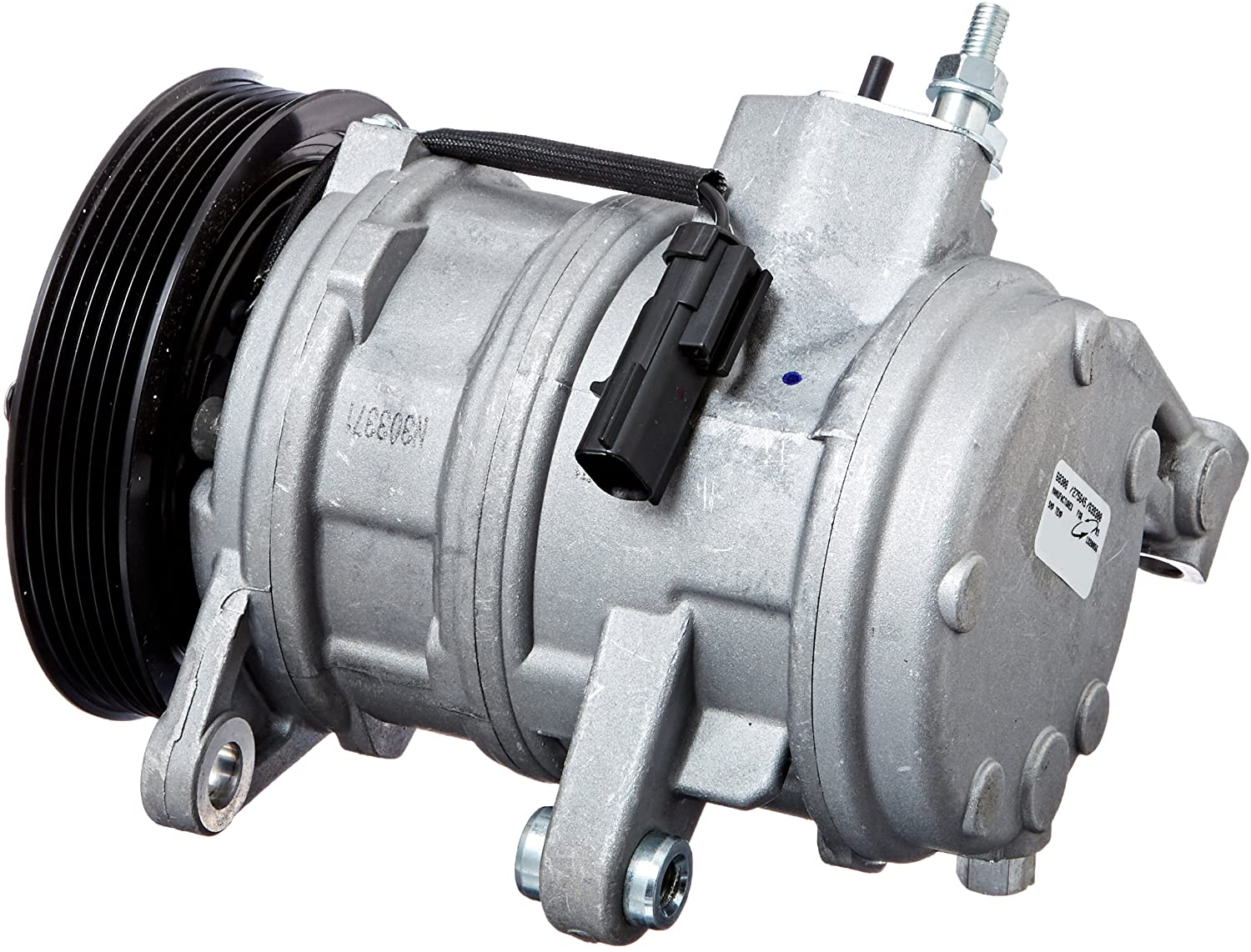

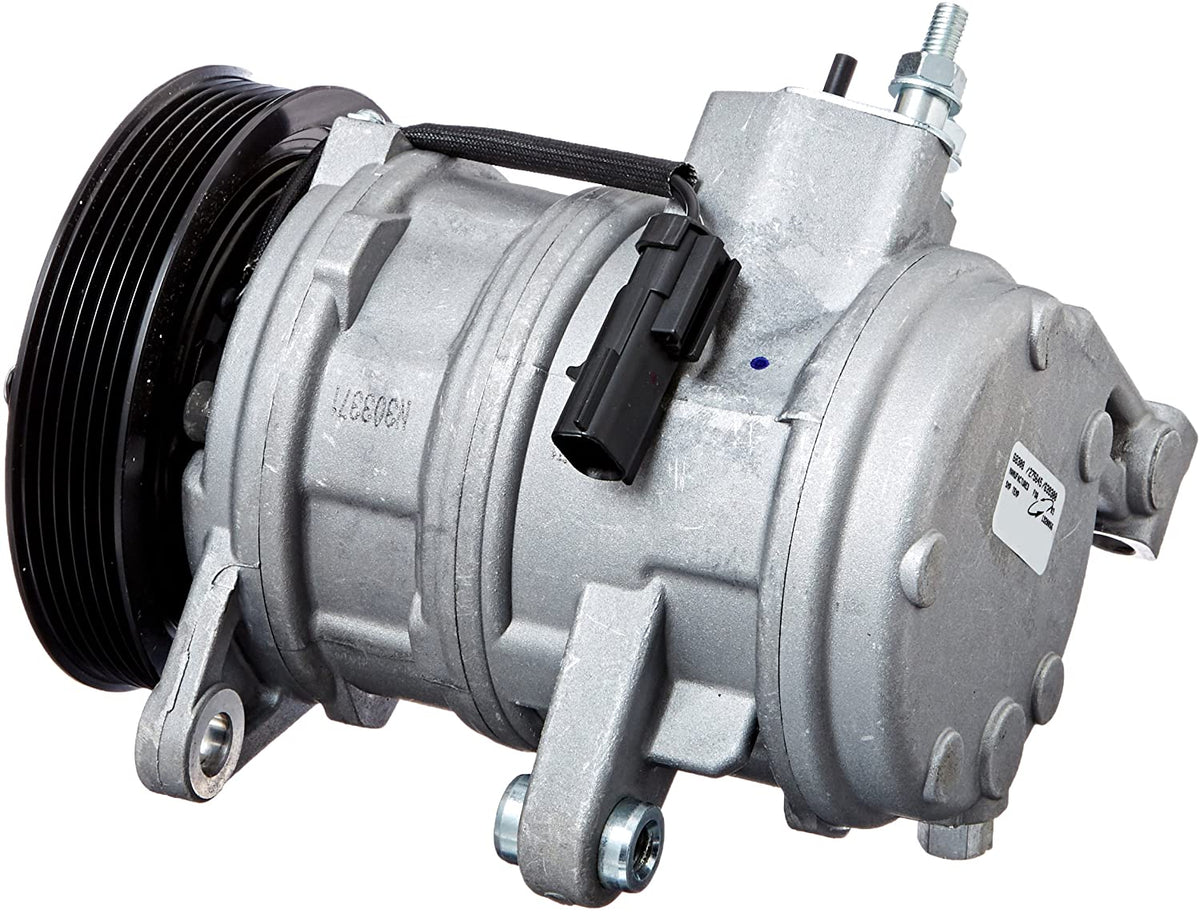

A/C compressor 4.7 V8 RAM 1500 04/07
Regular price
€617,06
Couldn't load pickup availability
Product details
- SKU 68308
Share it!
A / C compressor 4.7 V8 RAM 1500 04/07
| Linkage included | Inclusive |
| Maximum coupling diameter | 5.125 inches |
| Coil clock position | 1 wire conductor |
| Coil tension | 12 2H |
| Compatible type of refrigerant oil | Page 46 |
| Compressor type | 10s-17E |
| Type of drain port | O-ring / gasket |
| Distance from coupling to mounting flange | 0.59 IN |
| Mounting distance MM | 15.24 mm |
| Mounting material- | Not included |
| Mounting type | Tangent Assembly |
| New or Reman | New |
| O-ring a number / Desc | [24068] / gasket |
| O-ring a quantity | 1 |
| O-ring B number / Desc | [24069] / gasket |
| Quantity of O-ring B | 1 |
| Oil filled | Inclusive |
| Printed footnote | The use of an OE manifold may be required |
| Pulley belt type | Serpentine |
| Pulley diameter MM | 130.18 mm |
| Pulley Groove Quantity | 6 |
| Diameter pulley | 5.125 inches |
| Pulley Rich Diameter | 5.125 inches |
| Type of refrigerant | R134a |
| Type of suction port | O-ring / gasket |
| Terminal type | Pin |
| Type | Nippondenso |
| DODGE | DAKOTA | 2004-2007 |
| DODGE | RAM 1500 PICKUP | 2004-2007 |
