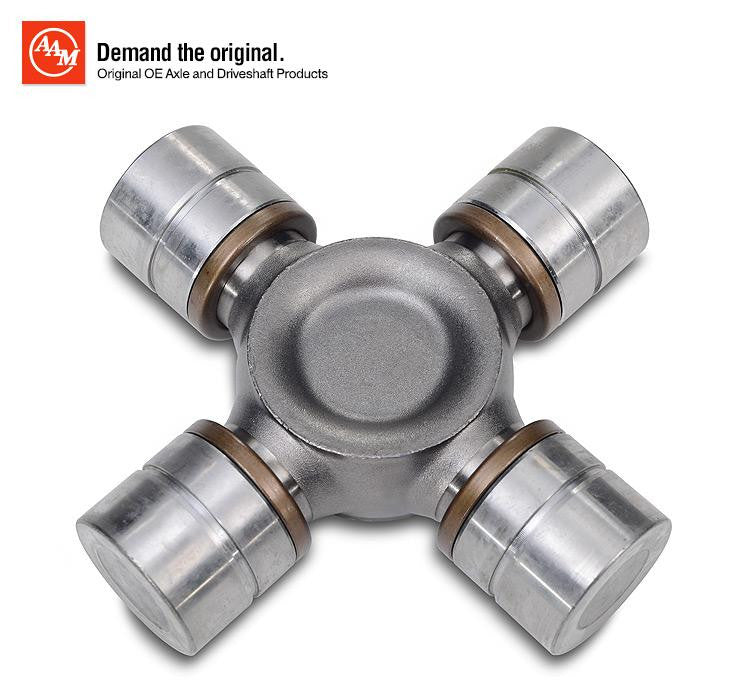

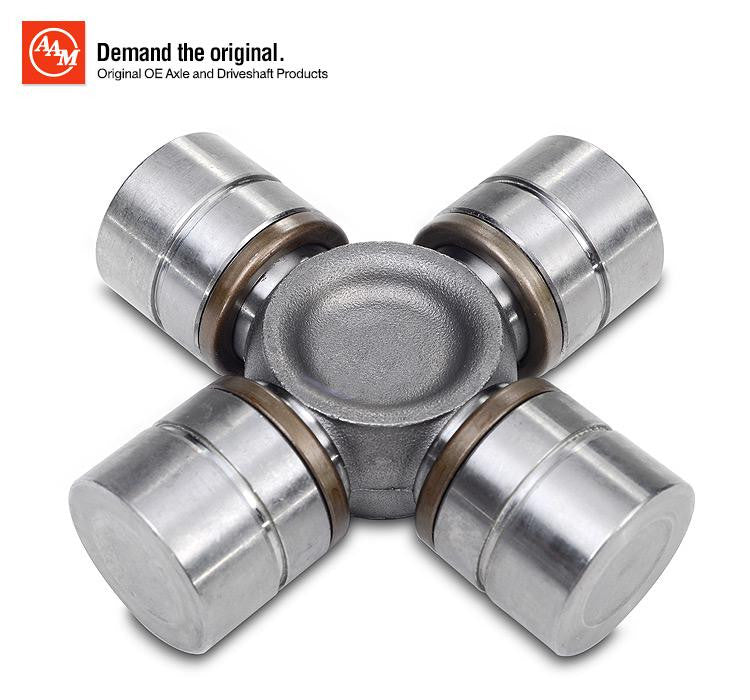

AAM 1485 Cross piece front axle 9.25 RAM 2500/3500 03/09

Aam 1485 cross piece, front axle 9.25 RAM 2500/3500 2003/2009 Wheel Side left and right

• Comes with exterior retaining rings for use in 1485 series driveshafts
• Dimension A & B = 4.178 inches
• Dimension C & D = 1.375 inch diameter
• Does not fit DANA SPIKER 1480 series driveshafts

Also for the Aam drive shaft at the front of the Dodge RAM 2500/3500 with the Aam 9.25 front axle.

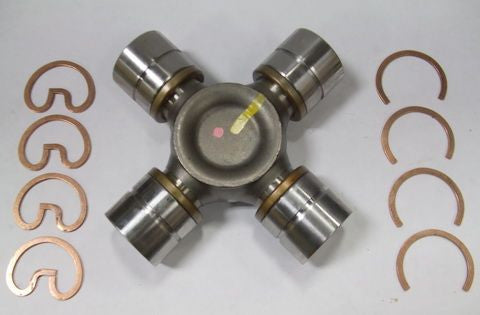

• Comes with INSIDE " C " Clips for use in 1485 series front axles
• All 4 bearing caps are 1.375 inches in diameter with "C"clips on the inside to lock the cap in place.
• 2.920 inches = the span between the inside surfaces of the joke where the "C"clips snap into place.

Built into every AAM component...
Aam designs, tests and validates components to the exact specifications of the vehicle manufacturer. The production activities - from heat treatment and sealing to gear cutting - use their own processes and methods. For example, the Aam gear cutting technology ensures that a specific gearbox meets the exact NVH (Noise Vibration Hardness) characteristics established by the vehicle manufacturer. Therefore, the use of non-OE shaft components can lead to unwanted noises, vibrations or substandard handling.

Below are the main features and advantages built into AAM OE front and rear axles:

• PowerDense ® sprockets

• Vehicle-specific NVH features

• Full laboratory development and validation

• Compatibility with multiple lubricants

• Seals with extended service life

• Advanced corrosion protection

• Mass-optimized components

AAM is a leader in providing powertrain technology. Since not all powertrains are the same, AAM packs its kits with the mechanic in mind. Each Aam output shaft seal kit contains the SEALs, bearings and hardware needed to do the job right the first time. If you want OE performance, use the same product specified by the OE manufacturer. Use Aam Power to supply brand shaft and output seal kits.

Eliminate come-backs

Only original equipment quality parts are guaranteed to meet the same specifications as the parts they replace. OE components ensure performance according to vehicle manufacturer standards ... to satisfy customers and eliminate come-backs and rework.
