Standard motor products

Coil 5.7 03/05

SKU: UF378
Only 2 left
Low inventory
€76,00

Product details

  • SKU UF378

Share it!

Description Reviews

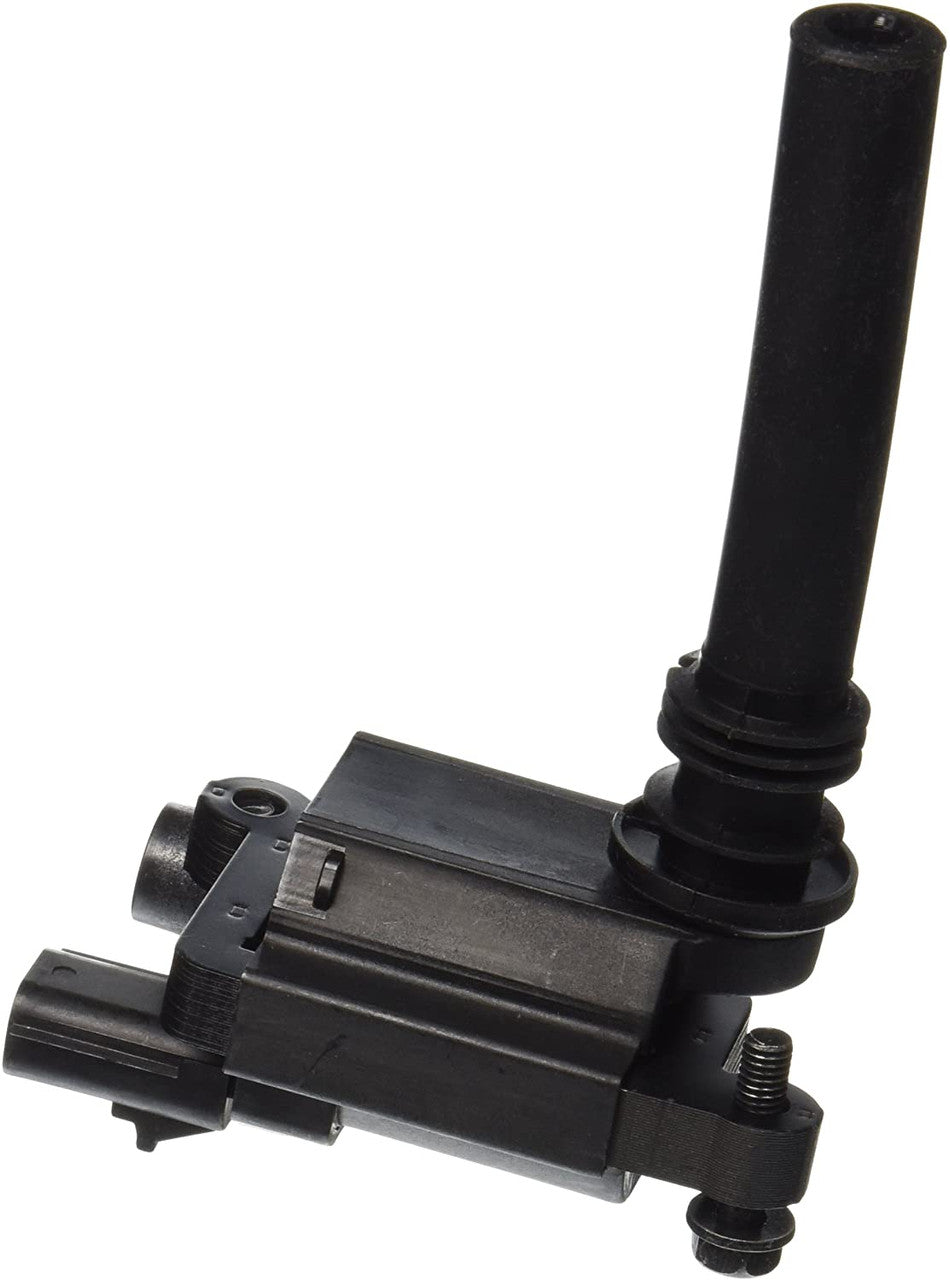

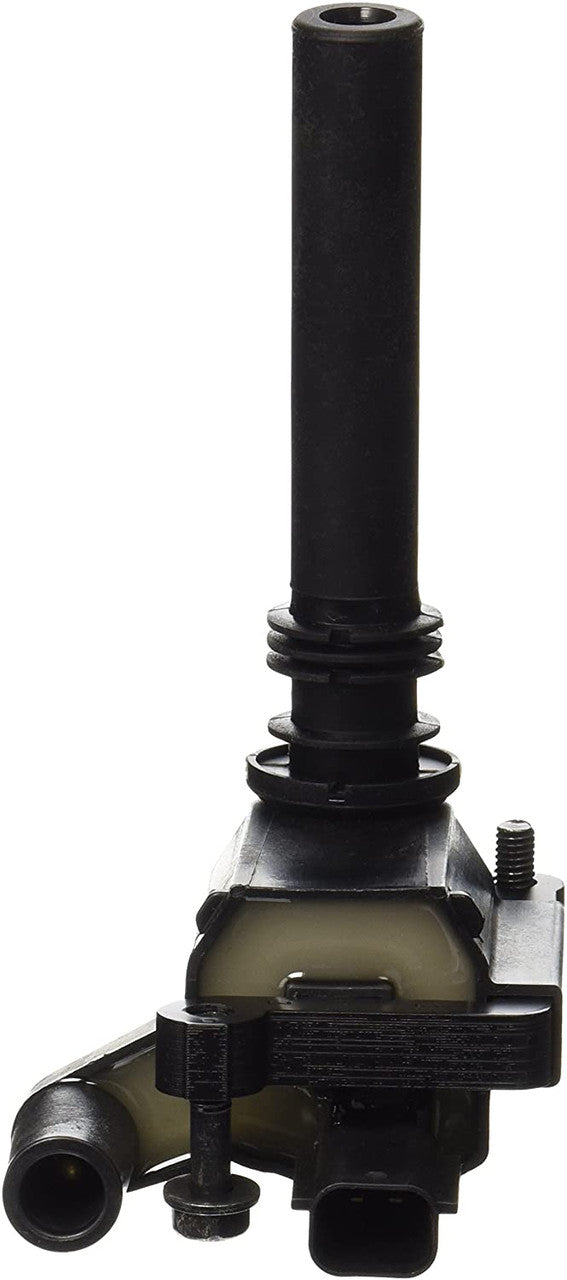

Ignition coil 5.7 03/05

Standard Blue Streak delivers heavy-duty enhancements not found in the original, making it the perfect match for any technician enforcing the very highest quality

  • Designed and tested to match or exceed OE for spark energy output, impedance and durability
  • Tested at Extreme engine performance at 7200 RPM
  • Advanced thermoplastic coil connector ensures good connection and resists breakage caused by heat and thermal cycles
  • Heat-resistant boot prevents high voltage leaks, while the stainless steel spring ensures a good connection to the spark plug
  • The impact-resistant housing material provides superior adhesion to epoxy for a longer service life under all operating conditions
  • Internal core surrounded by grain-oriented, magnetically laminated steel maximizes high voltage output at all speeds
  • Primary (22.5 gauge) and secondary (43 gauge) copper wire provide high voltage availability for peak performance, while reinforced bobbins prevent voltage overshoot for longer life
  • Copper wires with a higher degree of insulation provide heat resistance and prevent breakdown due to high voltage
  • Optimal thread distribution, developed through extensive testing, ensures superior functional parameters and durability
  • Insulator manufactured using high voltage resistant thermoplastics to prevent premature coil failure

Coil type Electronic
Color Black
Connector sex Female
Number of connectors 1
Connector shape Square
Connector type Plug in
Type of Assembly Screwing
Mounting bracket included Okay
Mounting hardware included Okay
mounting position Valve cover
Oil filled No
Terminal sex Male
Terminal quantity 2
Terminal type Sheet
Voltage 12

  • DODGE B150 1992-1994
  • DODGE B1500 1995-1997
  • DODGE B250 1992-1994
  • DODGE B2500 1995-1997
  • DODGE B350 1992-1994
  • DODGE B3500 1995-1997
  • DODGE CARAVAN 1991-1995
  • DODGE D150 PICKUP 1992-1993
  • DODGE D250 PICKUP 1992-1993
  • DODGE D350 PICKUP 1992-1993
  • DODGE DAKOTA 1990-1997
  • DODGE DAYTONA 1991-1993
  • DODGE DYNASTY 1991-1993
  • DODGE RAM 1500 PICKUP 1994-1997
  • DODGE RAM 2500 PICKUP 1994-1997
  • DODGE RAM 3500 PICKUP 1994-1997
  • 1997 DODGE RAM 3500
  • DODGE RAM 4000 1995-1996
  • DODGE RAMCHARGER 1992-1993
  • DODGE SHADOW 1991-1994
  • DODGE SPIRIT 1991-1995
  • 1995 DODGE STRATUS
  • DODGE W150 PICKUP 1992-1993
  • DODGE W250 PICKUP 1992-1993
  • DODGE W350 PICKUP 1992-1993
  • JEEP CHEROKEE 1991-1997
  • JEEP COMANCHE 1991-1992
  • JEEP GRAND CHEROKEE 1993-1997
  • JEEP WRANGLER 1991-1997
