Crosspiece Dana 60 Front axle 94/01 Ram 2500/3500-3

SKU: SPL55/4X
Pre-Order
Available for Pre-Order from the US
€124,78

Product details

  • SKU SPL55/4X

Share it!

Description Reviews

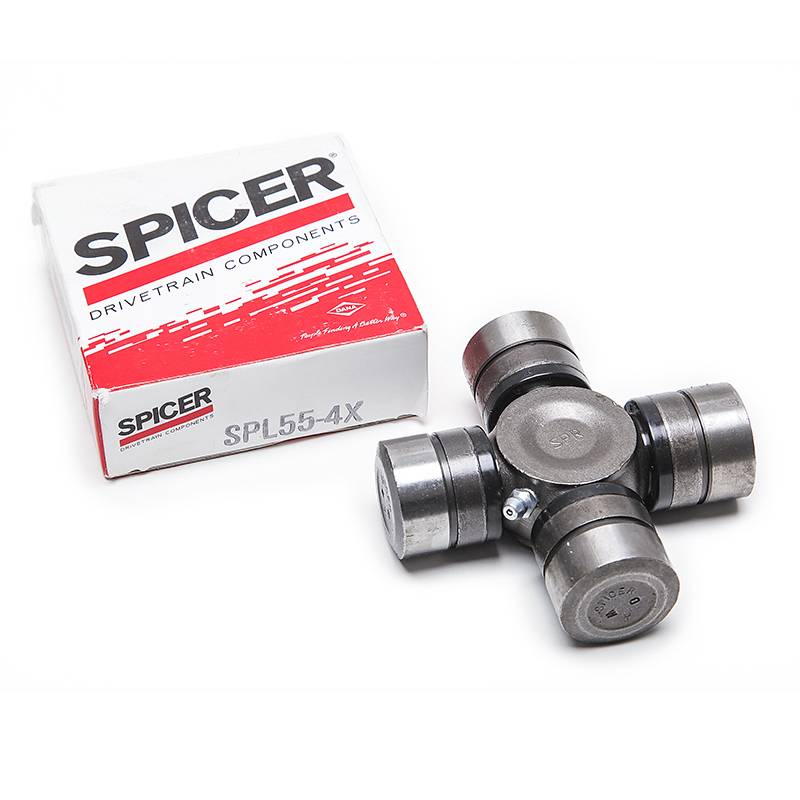

Crosspiece Dana 60 front axle 94/01 Ram 2500/3500-3

When you see the name Spicer, You know that you are buying the highest quality product available. Spicer universal couplings are no exception. Dana produces a full line of Spicer universal couplings that are designed to provide a --ensure longer service life for vehicles in a wide range of applications, from light vehicles to commercial and off-highway.

  • The Journal Cross is designed with a solid cold-formed body to create a --to ensure better wear and overall strength.
  • The bearing shells are heat treated for added strength; precision ground and hardened for durability.
  • The multiple lip seal keeps grease in and contaminants out, and ensures maximum retention in a wider range of environments.
  • Pressure rings prevent metal-to-metal contact, prevent wear and reduce the overall operating temperature.

Bearing cap diameter (1) 1.375 inches
Bearing cap diameter (2) 1.375 inches
Bearing cap Diameter A (MM) 34.925
Bearing cap Diameter B (MM) 34.925
Bearing cap type Round with ISR groove
Bearing Cap Type A ISR
Bearing Cap Type B ISR
Coating type No
Location of smeernippel Side of the cross
Bold Type NLGI Class 2
Including lubrication nipple J
Spreadable J
Includes hardware N
Length A (IN) 3
Length A (MM) 76.2
Length B (IN) 3
Length B (MM) 76.2
Material Steel
Model number SPICER 1480 WJ (SPL55
Including fasteners N
OEM manufacturer SPICER
OEM series SPL55/1480WJ
Pre-greased N
Seal color/finish Black
Seal material Rubber
Includes locking ring J
Type of retaining ring Internal
Type ISR style

DODGE RAM 2500 PICKUP 1994-2002
DODGE RAM 3500 PICKUP 1994-2002
DODGE W200 PICKUP 1975-1980
DODGE W250 PICKUP 1981-1993
DODGE W300 PICKUP 1973-1980
DODGE W350 PICKUP 1981-1993
