Spicer

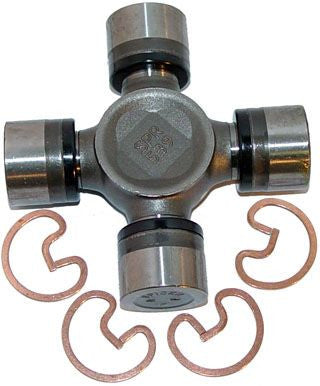

Crosspiece Spicer 5-1330X series

SKU: 5-1330X
In stock
Order by 4PM for Same-Day Shipping
€57,27

Product details

  • SKU 5-1330X

Share it!

Description Reviews

Crosspiece Spicer 5-1330x series

DODGE 1966-2010
RAM 2011-2013

Front drive axle at front axle; 4WD
Front drive shaft - CV at transfer case; 4WD
rear drive axle at rear axle; 4WD; extended cab pickup; standard cab pickup
Rear driveshaft at transmission; 4WD; extended cab pickup; standard cab pickup
on center bearing; rear-wheel drive; 2-piece rear driveshaft
at rear axle; rear wheel drive; 1 piece rear drive axle
on rear axle; rear-wheel drive; 2-piece rear driveshaft
in transmission; rear wheel drive; 1 piece rear drive shaft
transmission; rear-wheel drive; 2-piece rear driveshaft

DANA SPICER 5-1330X

  • 1330 Series non-lubricating universal joint
    • Bearing cap Diameter = 1.062
    • Width U-joint = 3.625
    • OUTSIDE SNAP RINGS = 4
  • Fits 4x4 front drive axle with DANA SPIKER CV head
    • RAM 1500
      • Past CV header 1995, 1996, 1997, 1998, 1999, 2000, 2001 with DANA SPIKER CV header
      • Fits SLIP YOKE 2000, 2001 only
    • RAM 2500 and RAM 3500
      • Past CV header 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 with DANA SPIDER CV header
      • Fits SLIP YOKE 2000, 2001, 2002 only

You expect a lot from your vehicle, and Spicer Life series (SPL) universal joints deliver that.SPL universal joints consistently outperform competitors, so you can hit the road or trail with confidence.see the difference SPL universal joints can make in your vehicle and be sure to get the longer life, greater load capacity and lower maintenance costs that Spicer Life Series (SPL) can offer

U-joint style (locking ring inside or outside); OSR
Distance between locking rings; G1 3.625
Cap outer diameter; D1 1.062
Distance between locking rings; G2 3.625
Cap outer diameter; D2 1.062
OE manufacturer; SPICER;
OE series   1330;
