Dayco Small ID Heater Hose Molded 09-18 (classic 19-20)
Couldn't load pickup availability
Product details
- SKU 87972
Share it!

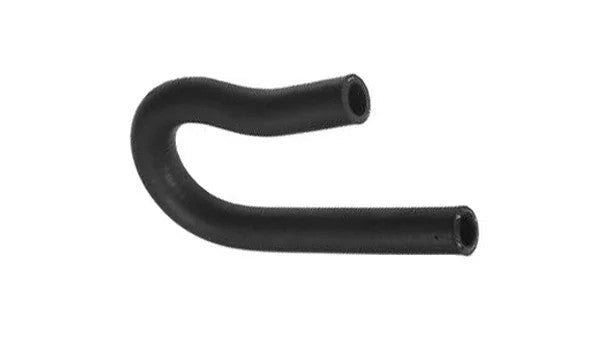

Dayco small I. D. Heater hose Molded 09-18 (classic 19-20)
The Dayco Small I. D. cast heater hose is designed to replace OEM coolant hoses in applications where cast hoses with small diameters (1 inch inside diameter or smaller) are required. The molded configuration eliminates the need for multiple connections of hoses and clamps when added to dayco's line of molded heating hoses and assemblies. The knitted reinforcement and EPDM construction provide high strength and resistance to harmful environmental elements, refrigerants and temperature fluctuations of -40-F (-40-C) to +257-F (+125-C). The dayco small I. D. cast heater hose line offers 98 percent coverage on the market. This hose not only meets the requirements of SAE j20r3, Class D-1, but is also designed to meet the electrochemical requirements of type EC as specified in SAE J1684.
| Color | Black |
| Contains heat shield | No |
| Includes protective cover | No |
| End 1 inner diameter (IN) | 5/8 |
| End 1 outer diameter (IN) | 1 |
| End 2 inner diameter (IN) | 5/8 |
| End 2 outer diameter (IN) | 1 |
| Snake type | Single-ID snake |
| Material | EPDM |
| SAE specification | SAE J20r3 Class D-1, SAE J1684 type EC |
| Trunk height (IN) | 33 1/2 |
| DODGE | RAM 1500 PICKUP | 2009-2010 |
| DODGE | RAM 2500 PICKUP | 2009-2010 |
| DODGE | RAM 3500 PICKUP | 2009 |
| RAM | 1500 | 2011-2018 |
| RAM | 1500 CLASSIC | 2019-2020 |
| RAM | 2500 | 2011-2018 |
| RAM | 3500 | 2011-2018 |
