Delphi

Fuel pump Dodge Ram 1500 2008

SKU: FG1427
Only 1 left
Low inventory
€266,32

Product details

  • SKU FG1427

Share it!

Description Reviews

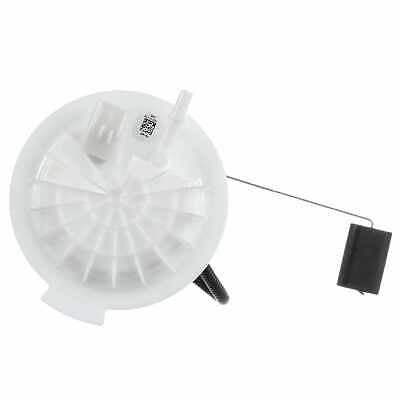

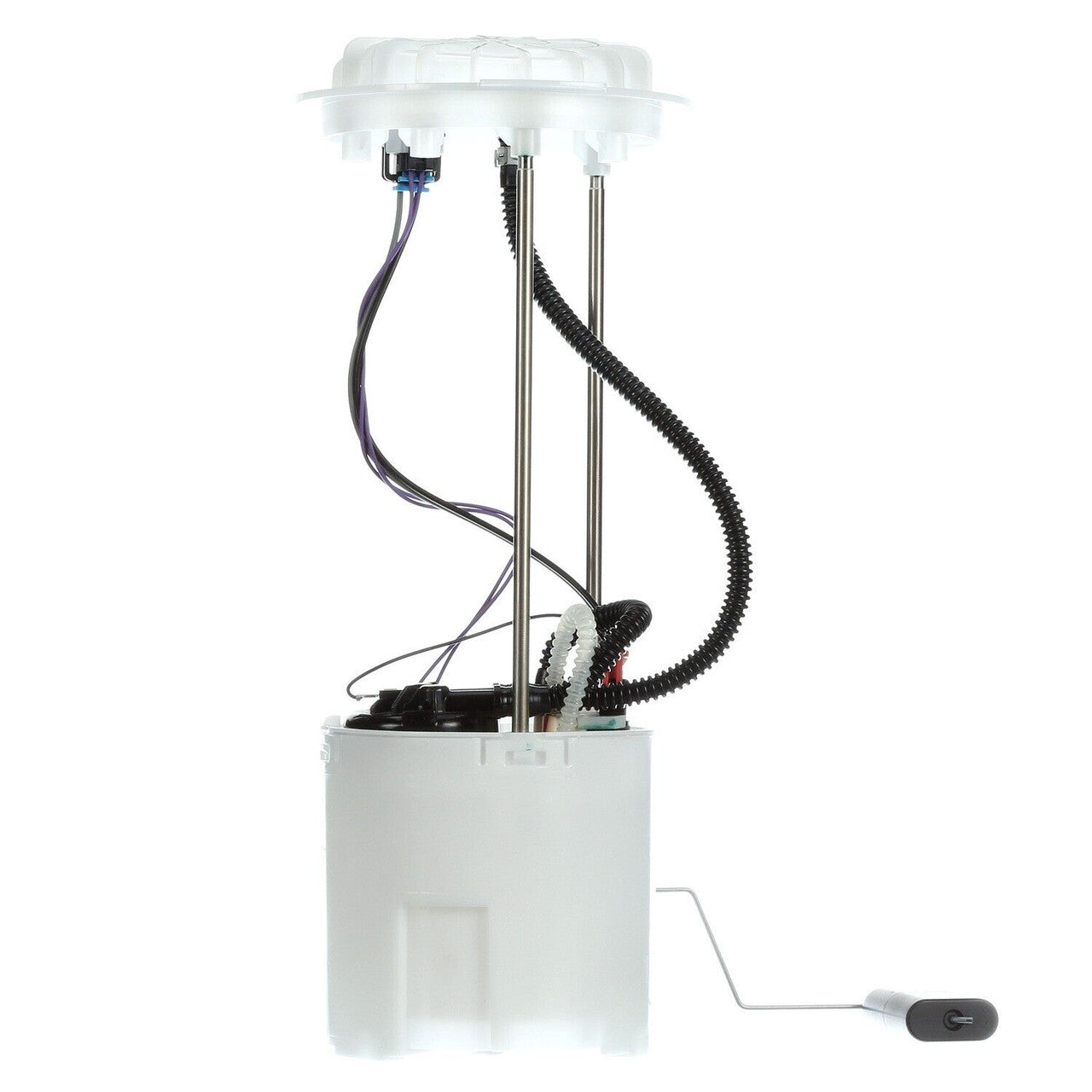

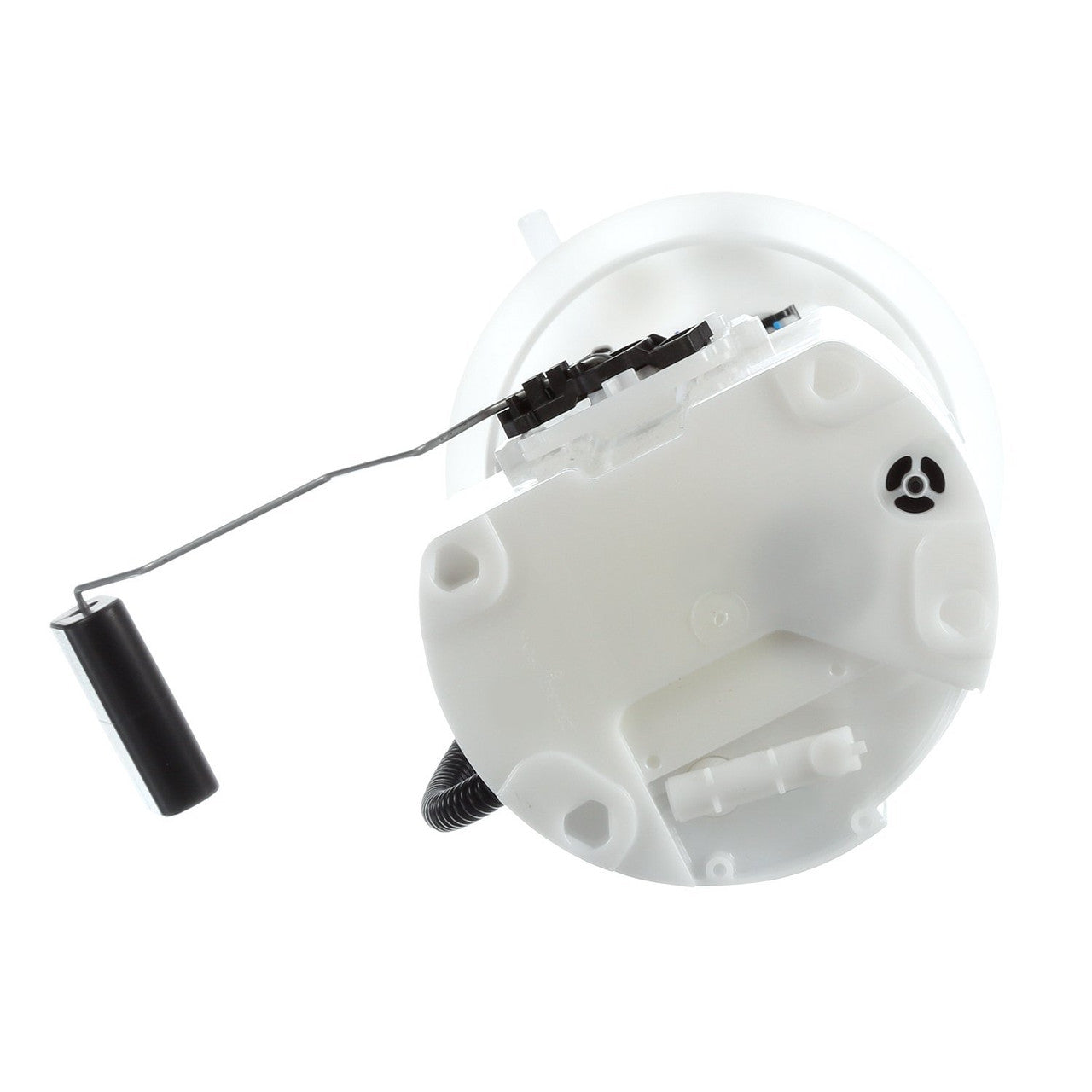

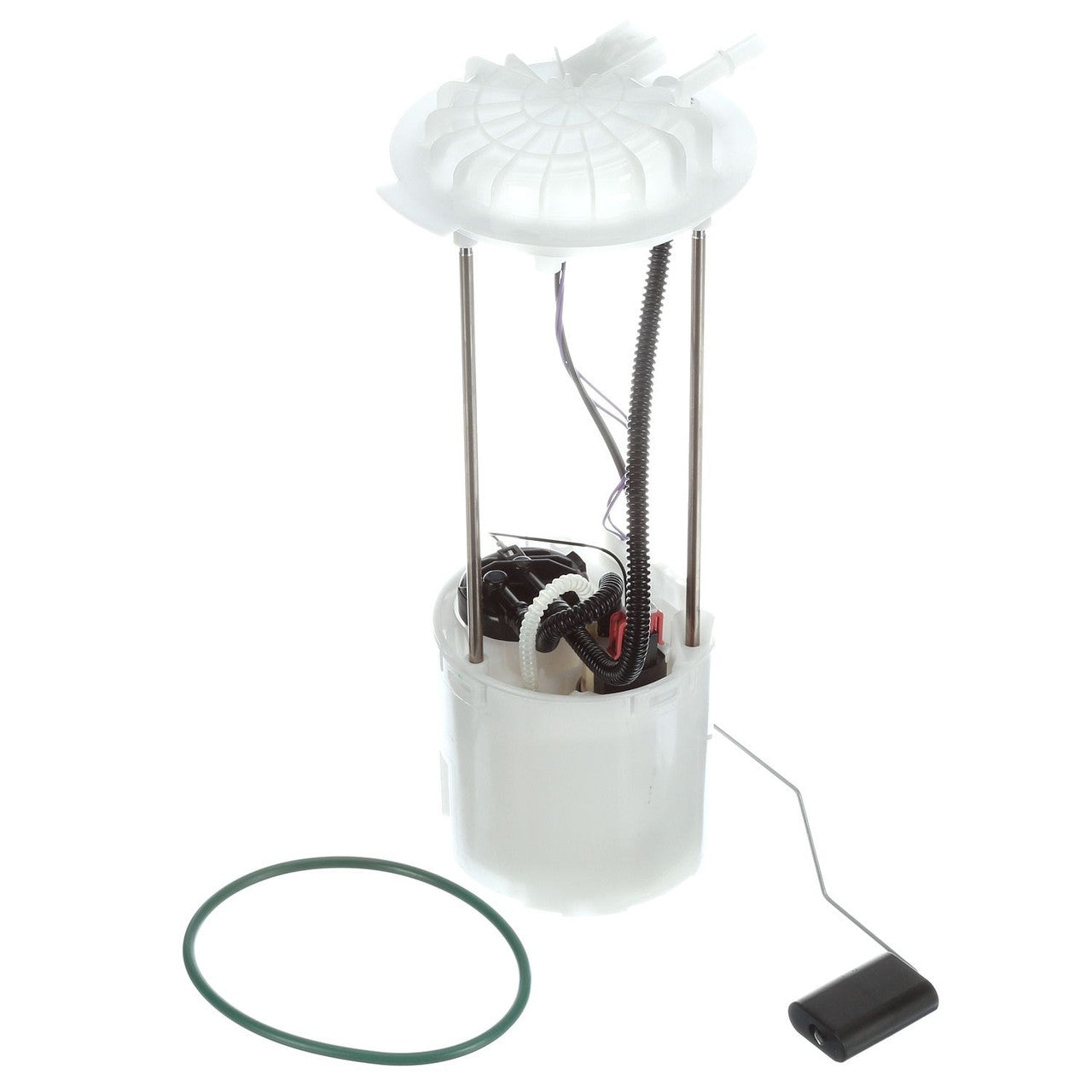

Fuel Pump Dodge Ram 1500 2008

Delphi has over 30 OE proprietary innovations and 150 patents in fuel module and pump design. All pumps are tested for durability up to 150,000 miles. Delphi OE engineering and testing processes enable them to create smart, durable, electric fuel pumps with features that are resistant to failure.

  • Larger connection size and improved connectors eliminate excessive electrical resistance, improve heat dissipation, and increase power capacity
  • OE fuel vapor pressure sensor confirms EVAP emission system is performing to specifications
  • Fill limit vent valve vents the fuel tank and closes the tank fill port
  • Integrated fuel pressure regulator maintains pressure at the fuel rail
  • Highly durable gold compound fuel level sensor for improved long-term sensor integrity
  • The patented Gen IV turbine pump provides better pumping with less energy consumption and withstands today's aggressive alcohol fuel mixtures
  • OE testing ensures that the pump can withstand extreme temperatures from -25 to 150° F
  • Tested in corrosive, contaminated E22 and E95 fuel mixtures to produce a --ensure long service life

Average catchment (68) 10
Average flow rate GP 20
Includes fuel level sensor Okay
Including gasket or seal Okay
In tank or external In the tank
Inlet type Sieve
Internal or external strainer Internal
Includes washer No
Maximum pressure (PS) 78.0
Exhaust outer diameter (IN) 0,375
Exhaust quantity 1
Exhaust type Quick Connect
Pump type Electric
Includes regulator Okay
Resistance Ohm Empty (82) 220.0
Resistance Ohm Full (82) 20.0
Strainer included Okay
System pressure 58 PSI
Terminal sex Male
Terminal quantity 4
Terminal type Sheet
Vapor pressure sensor No
Voltage (2H) 12.0

DODGE RAM 1500 PICKUP 2008

OEM / Interchange Numbers: 68027917AB, 68027917ac, 68027917ad, 68027917AE, 68027923ab, 68027923AC, 68027923ad, 68027923AE, 68027986AA, 68027986ab, 68027986AC, 68027986AD, 68027986AE, RL027986AC
