Delphi

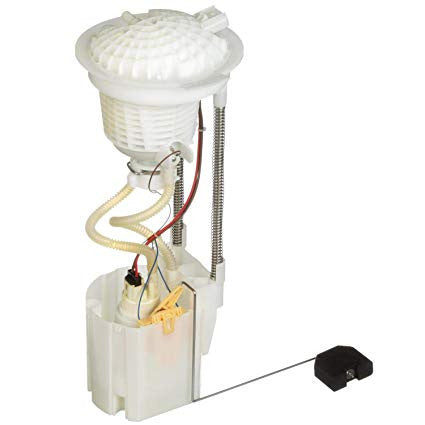

Fuel pump module RAM 1500 04/06 26Gal-2

SKU: FG0817
Only 1 left
Low inventory
€270,92

Product details

  • SKU FG0817

Share it!

Description Reviews

Fuel pump module RAM 1500 04/06 26GAL-2



Delphi owns more than 30 OE patented innovations and 150 patents in the field of fuel modules and pump designs.All pumps are tested for durability up to 240,000 km.Delphi OE engineering and testing processes enable them to create smart, durable, electric fuel pumps with features that are fault resistant



  • Larger terminal blocks and improved connectors eliminate excessive electrical resistance, improve heat dissipation, and increase current throughput
  • OE fuel vapor pressure sensor confirms EVAP emission system is performing to specifications
  • Fill limit bleed valve bleeds the fuel tank and seals the tank fill nozzle
  • Integrated fuel pressure regulator maintains pressure on the fuel rail
  • High durability gold composite fuel level sensor for improved long-term sensor integrity
  • Patented Gen IV turbine pump provides better pumping with less energy consumption and withstands today's aggressive alcoholic fuel mixtures
  • OE testing ensures that the pump can withstand extreme temperatures from -25 to 150F
  • Tested in corrosive, contaminated E22 and E95 fuel mixtures to produce a --ensure long service life



Replaces: 5104694AA, 5104694AB, 5104694AC, 68003351AA, 68003351AB, RL104694AC



Average power consumption (68) 13
Average flow GP 21
Fuel level transmitter Assembly included Okay
Fuel type Gas
Gasket or Seal included Okay
In tank or external In Tank
Inlet type Sieve
Internal or external strainer Internal
Washer included No
Maximum pressure (PS) 65,0
Exhaust outer diameter (IN) 0,375
Exhaust quantity 1
Output type Connect quickly
Package contents Fuel pump module with float arm, seal, instruction sheet
Pump type Electric
Regulator included Okay
Resistance Ohm Empty (82) 220,0
Resistance Ohm Full (82) 20.0
Strainer included Okay
System pressure 58 psi
Terminal sex Male
Final quantity 4
Terminal type Sheet
Vapor pressure sensor No
Voltage (2H) 12.0



DODGE RAM 1500 PICKUP 2004-2006
