Fuel Pump Module RAM 2009/2011
Regular price
€354,20
Couldn't load pickup availability
Product details
- SKU FG0889
Share it!

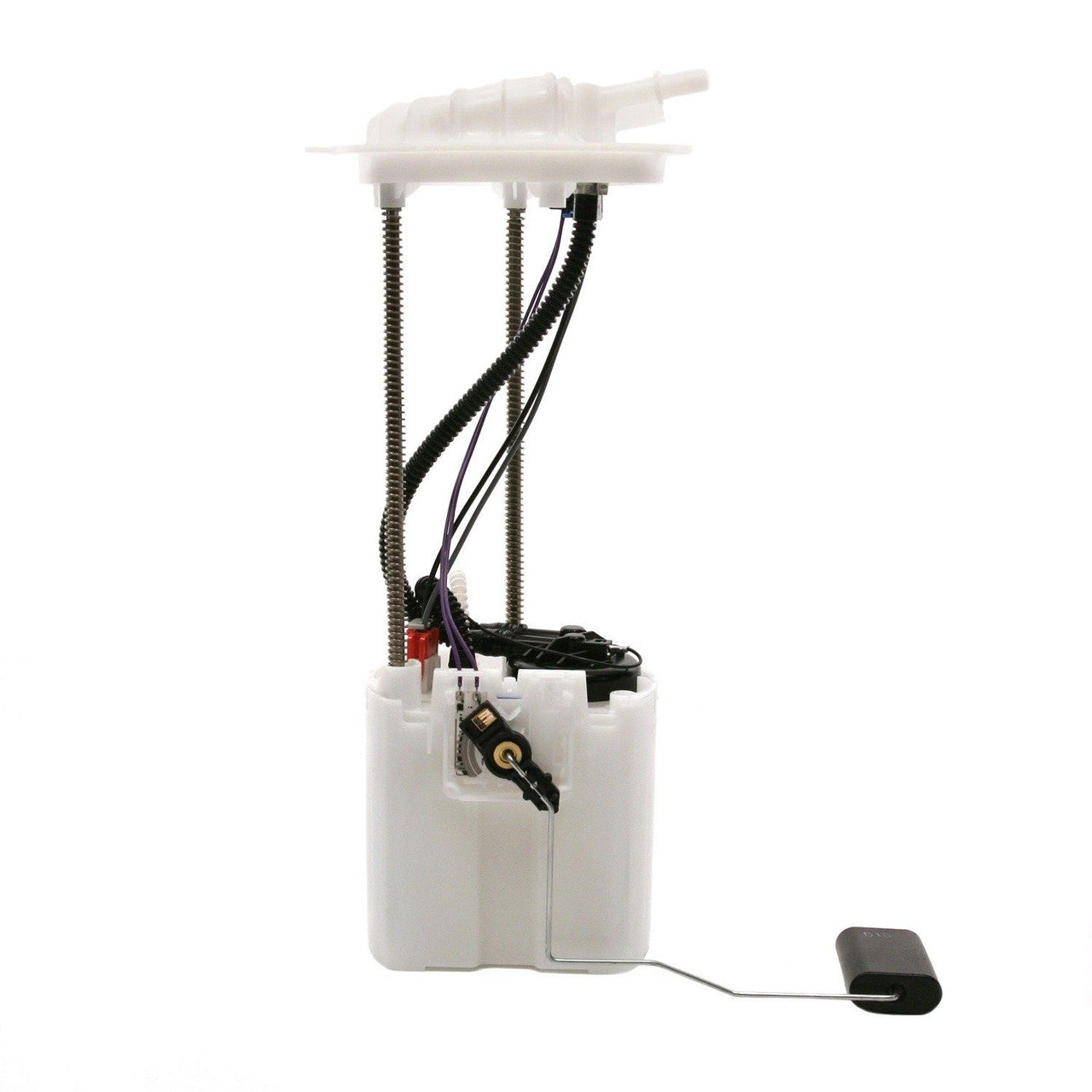

Fuel pump module RAM 2009/2011
68050962AA
Delphi owns more than 30 OE patented innovations and 150 patents in the field of fuel modules and pump designs.All pumps are tested for durability up to 240,000 km.Delphi OE engineering and testing processes enable them to create smart, durable, electric fuel pumps with features that are fault resistant
- Larger terminal blocks and improved connectors eliminate excessive electrical resistance, improve heat dissipation, and increase current throughput
- OE fuel vapor pressure sensor confirms EVAP emission system is performing to specifications
- Fill limit bleed valve bleeds the fuel tank and seals the tank fill nozzle
- Integrated fuel pressure regulator maintains pressure on the fuel rail
- High durability gold composite fuel level sensor for improved long-term sensor integrity
- Patented Gen IV turbine pump provides better pumping with less energy consumption and withstands today's aggressive alcoholic fuel mixtures
- OE testing ensures that the pump can withstand extreme temperatures from -25 to 150F
- Tested in corrosive, contaminated E22 and E95 fuel mixtures to produce a --ensure long service life
| Average power consumption (68) | 14 |
| Average flow GP | 21 |
| Fuel level transmitter Assembly included | Okay |
| Fuel type | Gas |
| Gasket or Seal included | Okay |
| In tank or external | In Tank |
| Inlet type | Sieve |
| Internal or external strainer | Internal |
| Washer included | No |
| Maximum pressure (PS) | 60,0 |
| Exhaust outer diameter (IN) | 0,375 |
| Exhaust quantity | 1 |
| Output type | Connect quickly |
| Package contents | Fuel pump module with float arm, seal, instruction sheet |
| Pump type | Electric |
| Regulator included | Okay |
| Resistance Ohm Empty (82) | 990,0 |
| Resistance Ohm Full (82) | 51.0 |
| Strainer included | Okay |
| System pressure | 58 psi |
| Terminal sex | Male |
| Final quantity | 4 |
| Terminal type | Sheet |
| Vapor pressure sensor | No |
| Voltage (2H) | 12.0 |
- DODGE RAM 1500;PICKUP 2009-2010
- RAM 1500 2011
