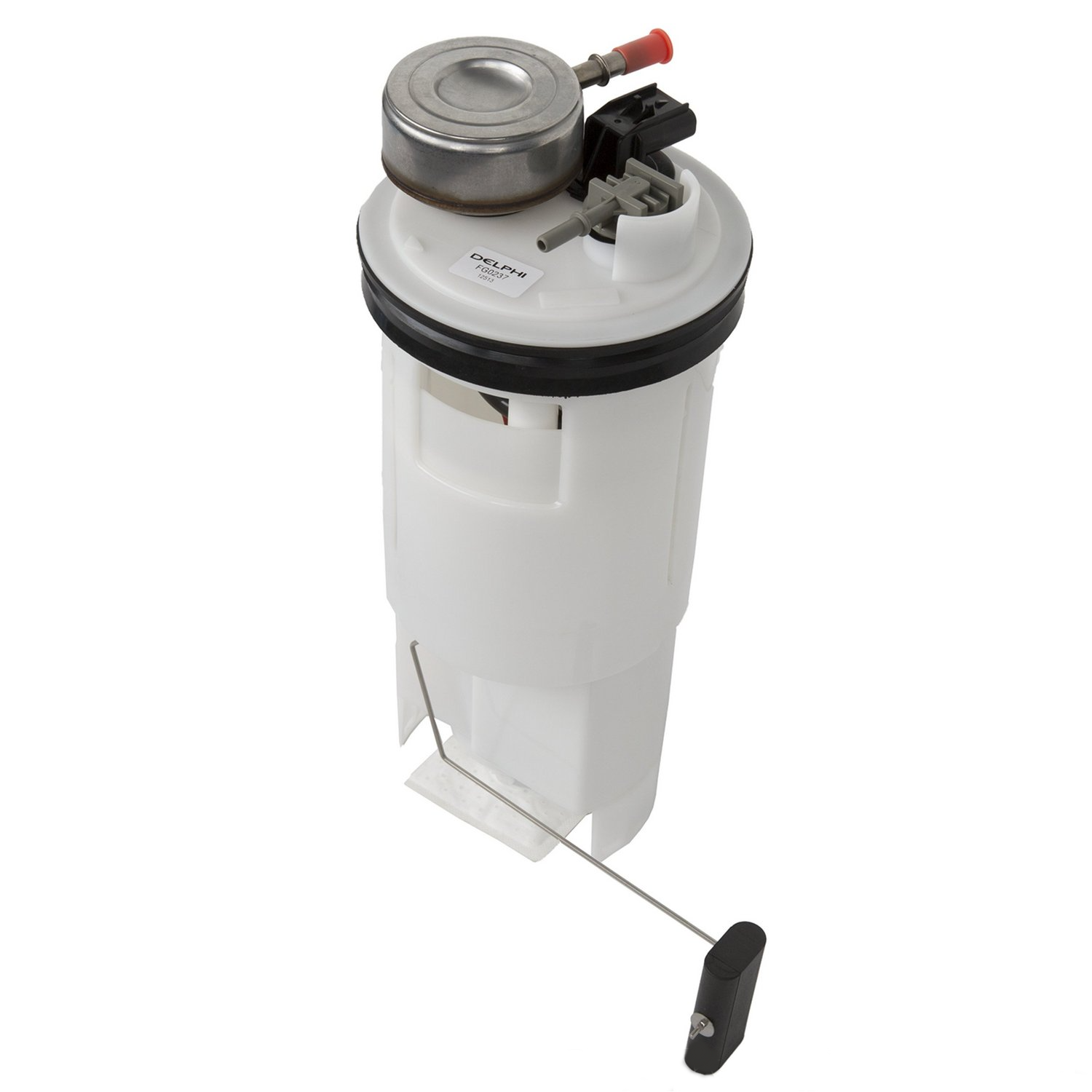

Fuel pump Ram 1500-2500-3500 1998/2002 2nd gen
Regular price
€337,85
Couldn't load pickup availability
Product details
- SKU FG0237
Share it!
Fuel pump Ram 1500-2500-3500 1998/2002 2nd gen
Delphi has over 30 OE proprietary innovations and 150 patents in fuel module and pump design. All pumps are tested for durability up to 150,000 miles. Delphi OE engineering and testing processes enable them to create smart, durable, electric fuel pumps with fault-resistant features.
- Larger connection size and improved connectors eliminate excessive electrical resistance, improve heat dissipation, and increase power capacity
- OE fuel vapor pressure sensor confirms EVAP emission system is performing to specifications
- Fill limit vent valve vents the fuel tank and closes the tank fill port
- Integrated fuel pressure regulator maintains pressure at the fuel rail
- Highly durable gold compound fuel level sensor for improved long-term sensor integrity
- The patented Gen IV turbine pump provides better pumping with less energy consumption and withstands today's aggressive alcohol fuel mixtures
- OE testing ensures that the pump can withstand extreme temperatures from -25 to 150F
- Tested in corrosive, contaminated E22 and E95 fuel mixtures to produce a --ensure long service life
| Average catchment (68) | 6 |
| Average flow rate GP | 31 |
| Includes fuel level sensor | Okay |
| Fuel type | Gasoline |
| Including gasket or seal | Okay |
| In tank or external | In the tank |
| Inlet type | Sieve |
| Internal or external strainer | External |
| Includes washer | No |
| Maximum pressure (PS) | 73.0 |
| Exhaust outer diameter (IN) | 0,375 |
| Exhaust quantity | 2 |
| Exhaust type | Quick Connect |
| Pump type | Electric |
| Includes regulator | Okay |
| Resistance Ohm Empty (82) | 223.0 |
| Resistance Ohm Full (82) | 20.0 |
| Strainer included | Okay |
| System pressure | 49 psi |
| Terminal sex | Male |
| Terminal quantity | 4 |
| Terminal type | Sheet |
| Vapor pressure sensor | No |
| Voltage (2H) | 12.0 |
| DODGE | RAM 1500 PICKUP | 1998-2001 |
| DODGE | RAM 2500 PICKUP | 1998-2002 |
| DODGE | RAM 3500 PICKUP | 1998-2002 |
OEM / Interchange Numbers: 4897666AA, 4897666AB, 4897666ac, 4897666AF, 5014318aa, 5014318AB, 5014318AE, 5014318AF, 5014318AG, 52102340, 52102340AB, 52102340AC, 52102568, 52102568AA, 52102568AB, RL897666AF
