Hooker Blackheart transmission support HEMI Swap Dakota 97/04

Hooker BlackHeart transmission support HEMI Swap Dakota 97/04

Make sure Gen III Hemi-swap started the right way, by utilizing a fully engineered engine mounting system that provides maximum clearance between parts and ideal drivetrain geometry.

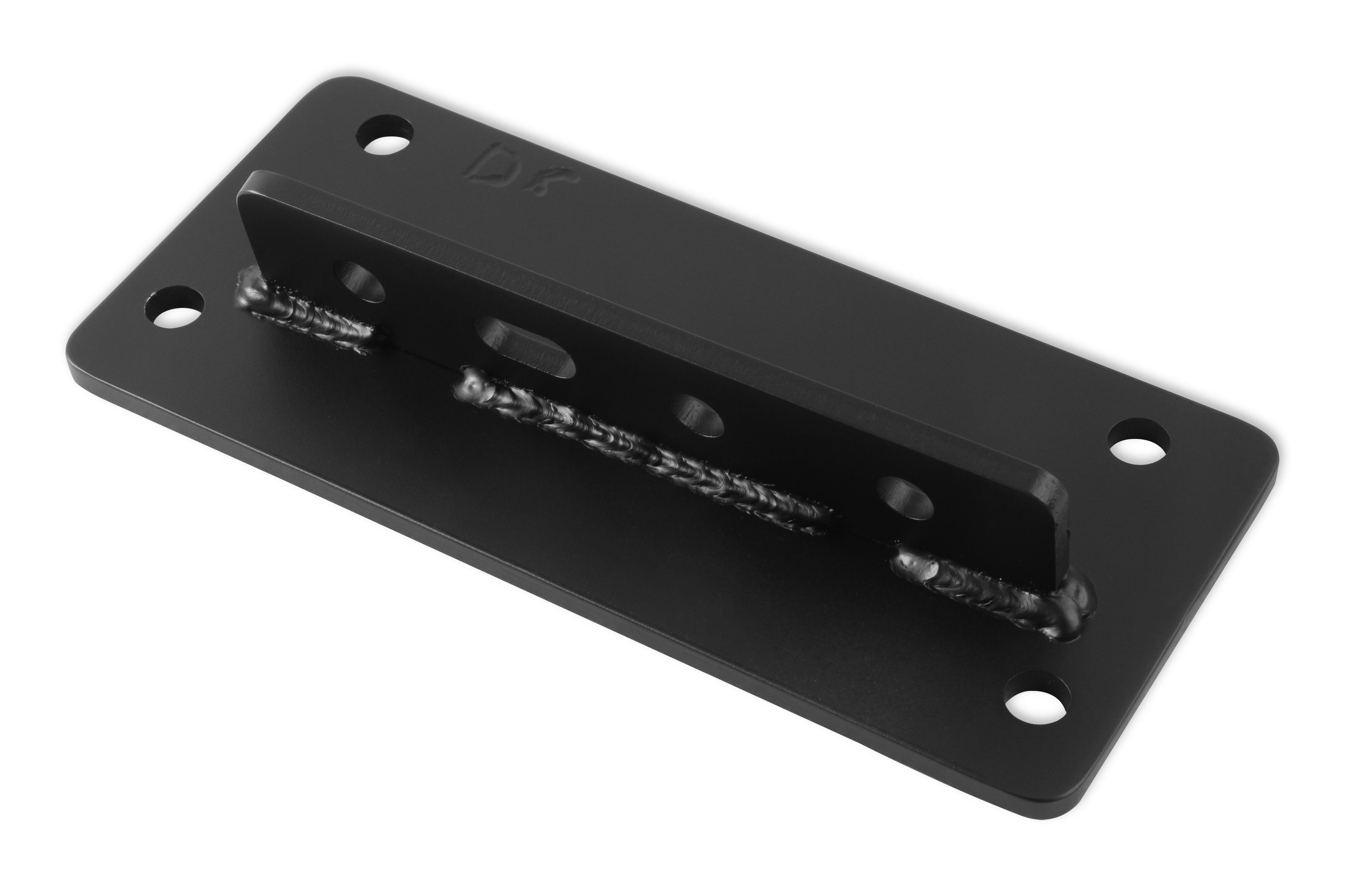

The transmission crossbar is a modular design that allows the use of different transmissions and uses a unique mounting bracket for each type of transmission. This design allows for future transmission modifications by swapping the transmission mounting bracket instead of replacing the entire crossbar.

This crossbar works with engine mounting brackets BHS541 (sold separately) for optimal engine placement to allow Short Runner valve clearance (eliminates firewall and brake booster adjustments).

Functions:

• Place a Gen III Hemi engine in your 1997-2004 Dodge Dakota two-wheeled truck

• Use with Gen III Hemi engines 2003 and up 5.7 L, 6.1 L, 6.2 L or 6.4 L & suitable adapter bracket for 8HP70, 8HP90, 9HP75, NAG1, TR6060, tkx (Ford), 545rfe/46 or A727 transmission ( sold separately)

• Black coating for durability and corrosion resistance

• Optimal engine location eliminates firewall and brake booster modifications-provides ample firewall clearance for: Short Runner Valve( SRV), factory 1999-2004 9.75-inch brake booster and mounting bracket , and Hellcat supercharger with HEMI0

• Eliminate the uncertainty of installation guesswork and compatibility associated with the use of universal exchange components

• Fully developed interchange system that provides optimized clearance between parts and operating angles of the drivetrain / U-joints when used with BHS541 engine mounts

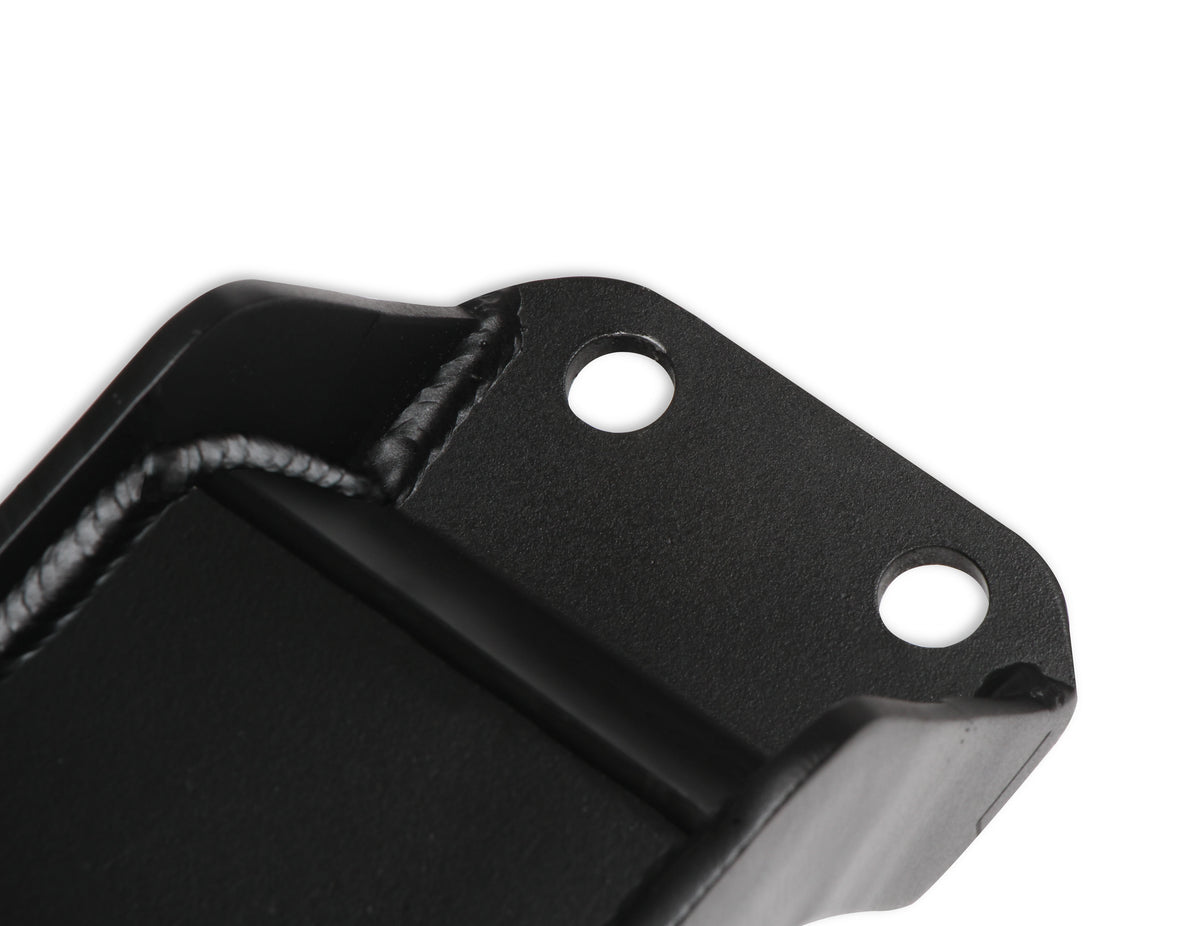

• Welded steel construction-lightweight, rigid design with a clean appearance

• Provides space for up to 3 " exhaust system

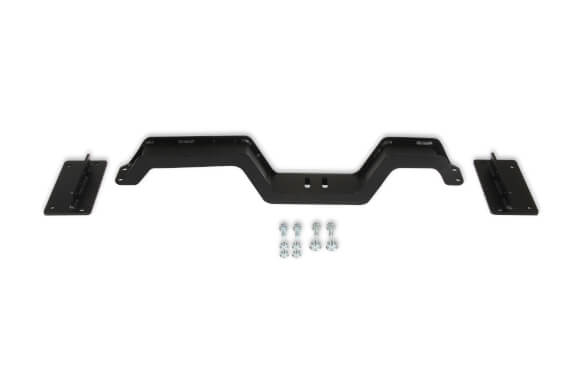

• Includes crossbar, frame mounting brackets and fasteners
