Oracle LED bar Rebel/TRX Front Bumper FLush AMBER

Oracle led bar Rebel / TRX front bumper FLush AMBER

Oracle 19-22 Ram Rebel / TRX Front Bumper Flush LED light bar System

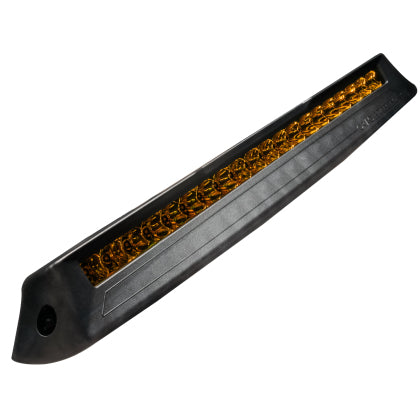

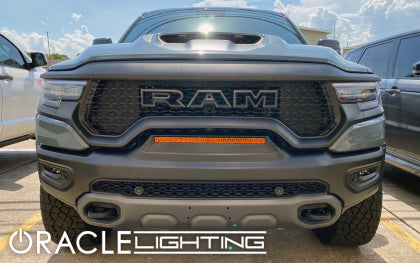

This unique new lighting system from ORACLE lighting provides functional forward LED lighting while maintaining a factory appearance. The powerful 100W LED light bar is mounted in a housing designed to mimic the shape of the original factory bumper and integrate into the front of the 2019+ RAM 1500 TRX or Rebel. The lighting system is installed using Rivet nuts, which require 2 3/8" holes to attach the beam to the bumper. The wiring can be easily connected to the factory AUX switches. The projection of the light bar is a mixed beam where 8 of the LEDs use a flood beam (45 degree angle) and 12 of the LEDs use a spot beam (25 degree angle).

• Housing: polycarbonate
• Lens: optically clear Lexan
• Watt: 100W (20X 5W LED)
• Amperage: 7.5 A @ 12VDC
• LED: Osram CRDP LED chip
• Lumen: 12,000 lm
• LED life: more than 50,000 hours
• Degree of protection: IP69K
• Input voltage: 9V-36V DC

Installation Guide
