Oracle LED bar Rebel/TRX Front Bumper FLush WHITE

Oracle led bar Rebel / TRX front bumper FLush WHITE

Oracle 19-22 Ram Rebel / TRX Front Bumper Flush LED light bar System

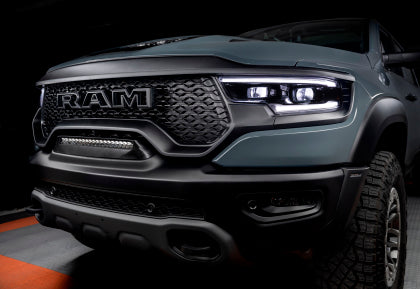

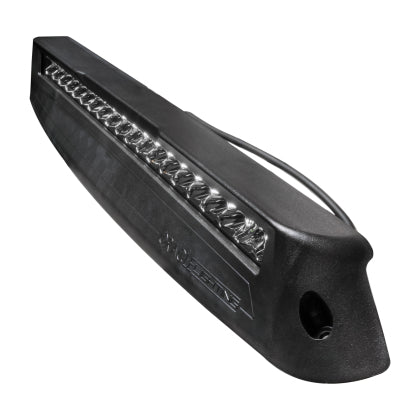

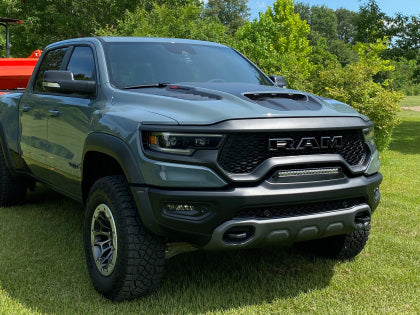

Looking for a 2019 + RAM 1500 light bar system with a seamless look-this unique new lighting system from ORACLE offers functional LED lighting while maintaining the factory look. The powerful 100W LED light bar is mounted in a housing designed to mimic the shape of the original factory bumper and integrate into the front of the 2019+ RAM 1500 TRX or Rebel.

This new auxiliary light design from ORACLE Lighting incorporates both Tir (Total Internal Reflection) and LED Reflector Facing Technology to create a --high-quality light output with an accurate beam pattern. By combining both optical technologies, this light provides a beam pattern of an average of 30 degrees and projects a total distance of almost 500 meters. The integrated LED marker lights feature both white and orange LEDs that can be used for parking lights, DRL and / or turn signals.

The lighting system is installed using Rivet nuts, which require 2 holes of 3/8 " to attach the beam to the bumper.The wiring can be easily connected to the factory AUX switches.

Specifications:

• Housing: polycarbonate
• Lens: optically clear Lexan
• Watt: 100W (20X 5W LED)
• Amperage: 7.5 A @ 12VDC
• LED: Osram CRDP LED chip
• Lumen: 12,000 lm
• LED life: more than 50,000 hours
• Color temperature: 5500K (white only)
• Degree of protection: IP69K
• Input voltage: 9V-36V DC

Installation Guide
