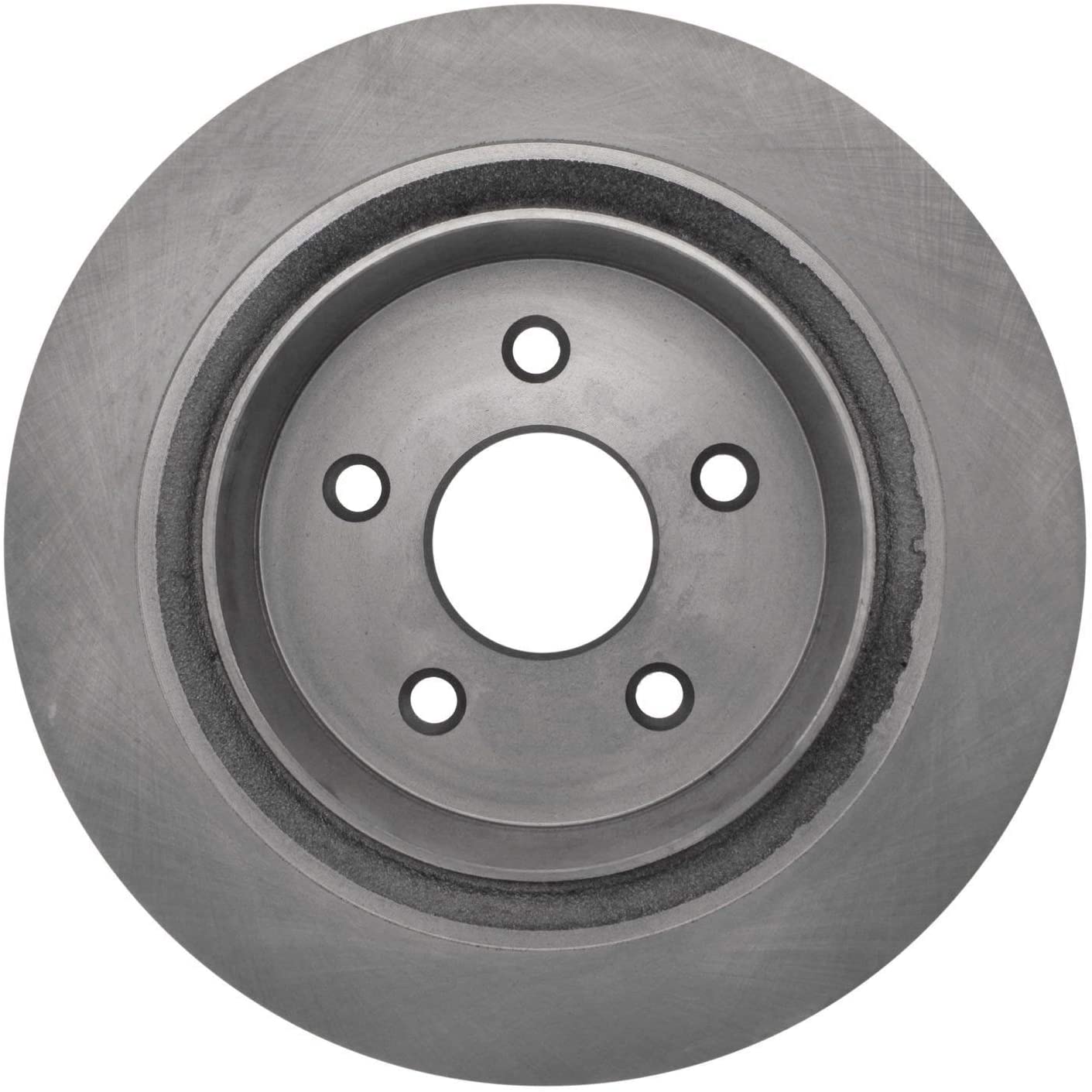

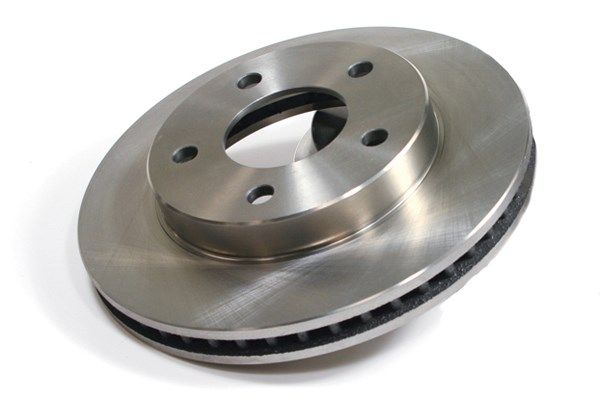

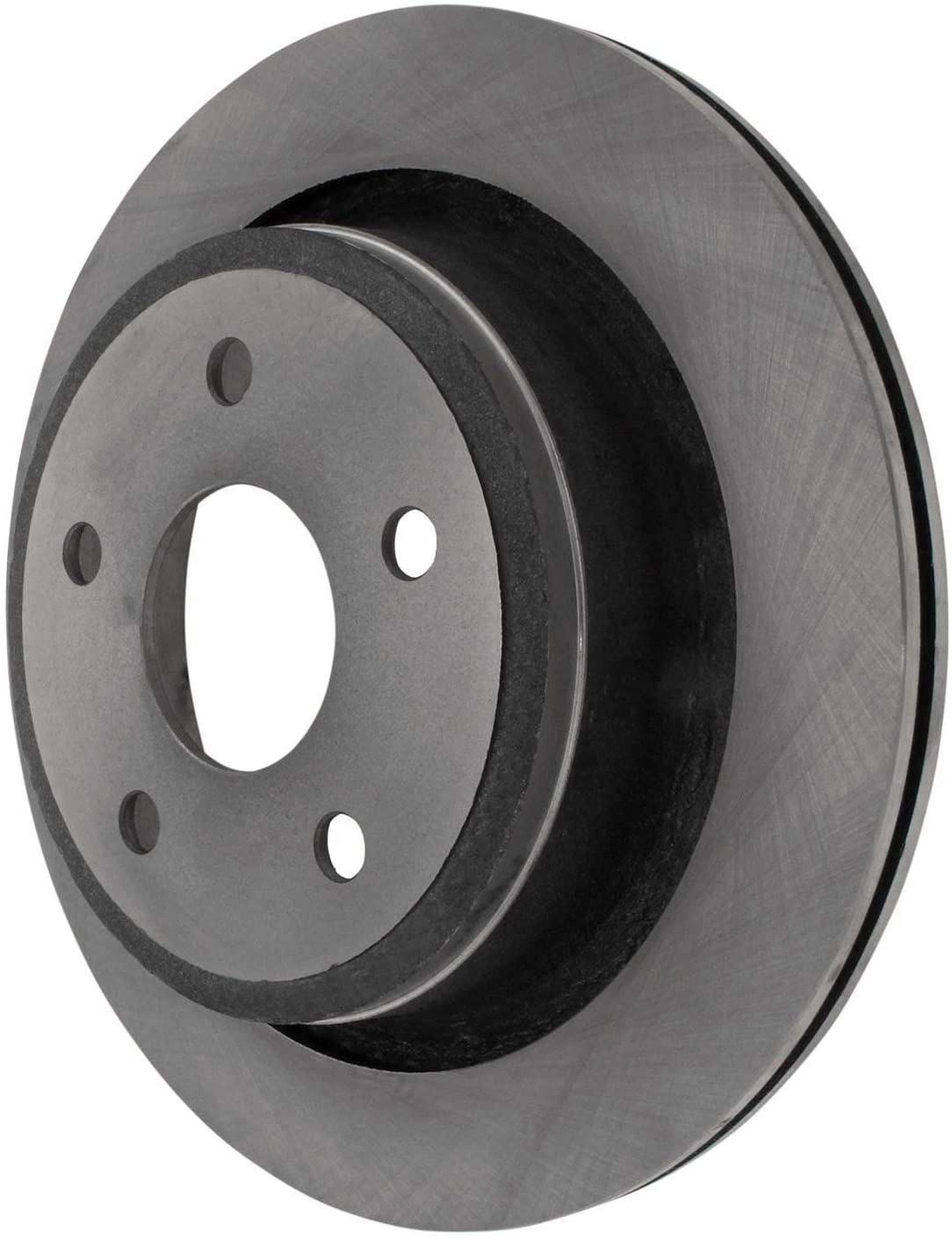

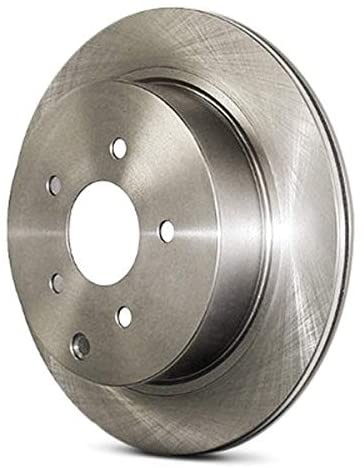

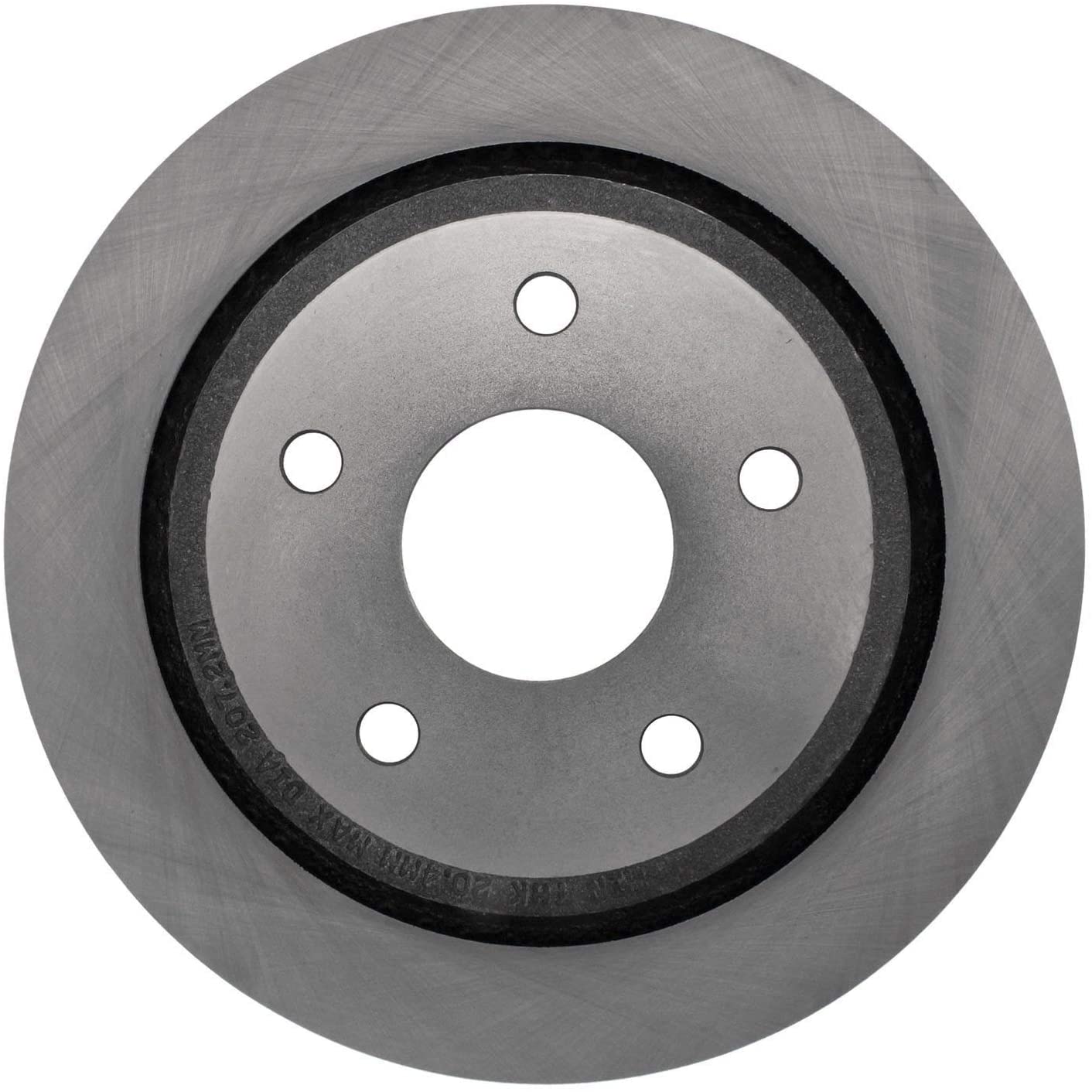

Rear brake disc C-Tek Std RAM 1500 02+
Regular price
€131,43
Couldn't load pickup availability
Product details
- SKU 12167054
Share it!
Dodge Ram rear brake disc 02+:
- Suitable for the Dodge Ram 1500 from year 2002
- Brand Centric
- Quality is equal to the original Mopar brake discs
- Excellent to combine with our range of Hawk brake pads for example HB513Y. 610
- Our advice is always to replace the brake discs left and right, due to the direction sensitivity
- Always install new pads on a new brake disc
ABS sensor ring included | No |
Diameter of bolt circle (IN) | 5.512 |
Diameter of bolt circle (MM) | 140.000 |
Disk mounting | Floating / DIH |
Disposable thickness (IN) | 0.803 |
Discard thickness (MM) | 20.400 |
Max PB-drum Dia (IN) < BR > | 8.157 |
Max PB drum Dia (MM) | 207.200 |
Various holes | 0 |
Nominal drum diameter (IN) | 8.110 |
Nominal drum diameter (MM) | 206.000 |
Nominal thickness (IN) | 0,866 |
Nominal thickness (MM) | 22.000 |
Outer diameter (IN) | 13.858 |
Outer diameter (MM) | 352.000 |
Total height (IN) | 2.835 |
Overall height (MM) | 72.000 |
Solid or ventilated type rotor | Ventilate |
Surface Type | Soft |
Vane style | Directly |
DODGE | DAKOTA | 2010 |
DODGE | DURANGO | 2004-2009 |
DODGE | RAM 1500 PICKUP | 2002-2010 |
RAM | 1500 | 2011-2018 |
RAM | 1500 CLASSIC | 2019-2022 |
RAM | 4000 | 2016 |
