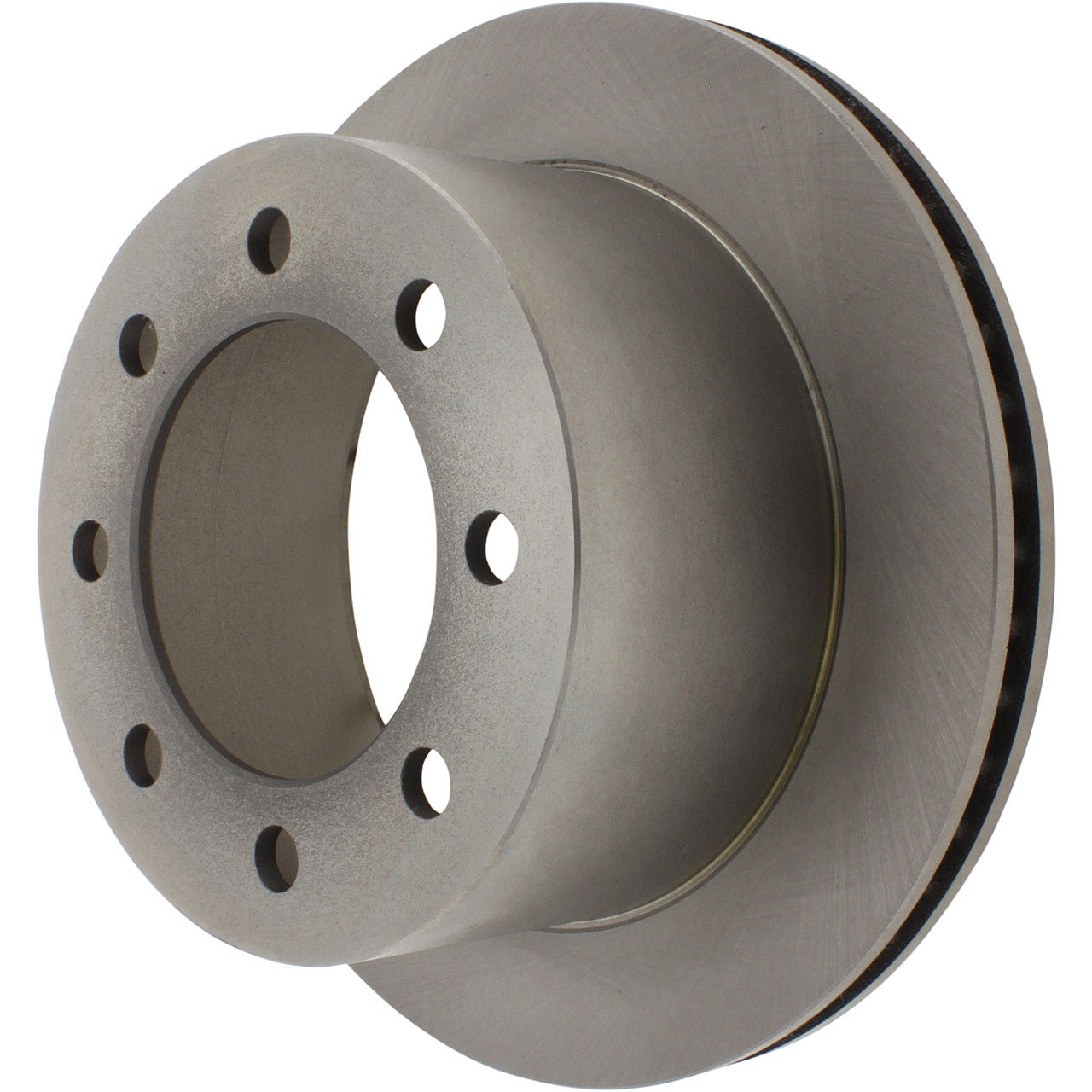

Rear Brake Disc C-Tek Std. Ram 2500/3500 01-02
Couldn't load pickup availability
Product details
- SKU 12167051
Share it!
Rear Brake Disc C-Tek Std. Ram 2500/3500 01-02
A-grade brake discs from America's largest manufacturer of brake parts: Centric
We have been selling and assembling these brake discs for years with the full satisfaction of all our customers.
Quality is identical to the original Mopar brake discs only much more competitively priced!
Looking to upgrade your standard brake disc---
Take a look at our High Carbon discs. Due to the higher carbon content, these are much more resistant to heat and deformation.
If you prefer drilled and/or grooved brake discs, we supply almost all models StopTech brake discs.
For maximum deceleration, choose the brake pads of HAWK Perfomance in combination with your new brake discs!
All brake discs are offered individually, so you should always order 2!
Stoptech discs are Direction sensitive, so always order a left and right brake disc.
- Optimal surface finish for consistent braking power from the first stop
- OE vane design and plate thickness for heat capacity and strength
- Low initial lateral swing and disc thickness variation for smooth, vibration-free stopping
- Precisely balanced for vibration-free performance
- G11h18 metallurgy
ABS sensor ring included | No |
Diameter of bolt circle (IN) | 6.500 |
Diameter of bolt circle (MM) | 165.100 |
Disk mounting | Floating / DIH |
Disposable thickness (IN) | 1.118 |
Discard thickness (MM) | 28.390 |
Max PB-drum Dia (IN) < BR > | 8.157 |
Max PB drum Dia (MM) | 207.200 |
Various holes | 0 |
Nominal drum diameter (IN) | 8.110 |
Nominal drum diameter (MM) | 206.000 |
Nominal thickness (IN) | 1.181 |
Nominal thickness (MM) | 30.000 |
Outer diameter (IN) | 12.732 |
Outer diameter (MM) | 323.400 |
Total height (IN) | 5.154 |
Overall height (MM) | 130.900 |
Solid or ventilated type rotor | Ventilate |
Surface Type | Soft |
Vane style | Directly |
DODGE | RAM 2500 PICKUP | 2001-2002 |
DODGE | RAM 3500 PICKUP | 2001-2002 |
DODGE | RAM 4000 | 2001-2002 |
