Specification: Mopar 68089195AA

Oil type: Full synthetic

Recommendation:

BorgWarner 44-40, BorgWarner 44-44, BorgWarner 44-45 bis 2016, BorgWarner 44-46, BorgWarner 44-47, BorgWarner 44-48, Chrysler 300C LX, Chrysler Verteilgetriebe 68214750AC, Chrysler Verteilgetriebe 68214751AB, Chrysler Verteilgetriebe 68214751AC für 300C LX, MB 236.13 (A 001 989 23 03), Mercedes A 001 989 22 03, Mercedes Verteilgetriebe A2032800700, Mercedes Verteilgetriebe A2112800900, Mercedes Verteilgetriebe A2112801000, Mercedes Verteilgetriebe A2202800700, Mopar 68049954AC / 68049954AA

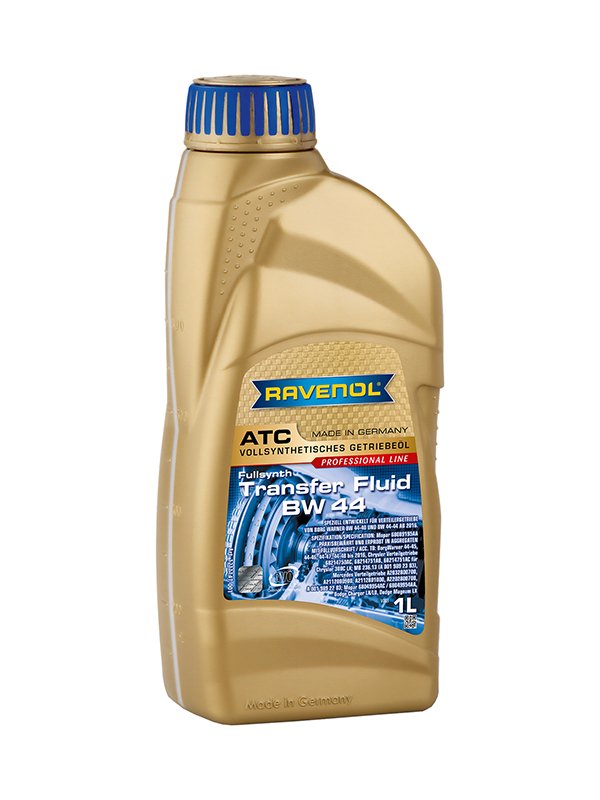

RAVENOL Transfer Fluid BW 44 is a PAO (Poly-alpha-olefin) based, full synthetic transfer fluid with a special additive and inhibition, which ensure the proper functioning of the active transfer case.

RAVENOL Transfer Fluid BW 44 is a full synthetic gear lubricant for use in electronically controlled active transfer case.

RAVENOL Transfer Fluid BW 44 ensures optimum power transmission.

Application Note

RAVENOL Transfer Fluid BW 44 was developed for use in Borg-Warner transmission systems BW 44-40 and BW 44-44 from 2016.

RAVENOL Transfer Fluid BW 44 provides a stable viscosity even under the highest loads. It is particularly suitable when a specification according to MB 236.13 is required for Mercedes A001 989 23 03; Mercedes transfer case A2202800700, A2112801000, A2112800900, A2032800700, A2112801000, A2112800900, A2032800700 for 4Matik S-Klasse W220, E-Klasse W211, C-Klasse W203. Also suitable for Chrysler transfer case 68214750AC, 68214751AB, 68214751AC for Chrysler 300C LX, Dodge Charger LX/LD, Dodge Magnum LX.

Characteristics

Very good lubricating ability even at very low temperatures in winter
A high, stable viscosity index
Very good oxidation stability
Protection against wear, corrosion and foam formation
Good balanced coefficient of friction
Neutral towards sealing materials
Neutral behavior by inhibition compared with non-ferrous metals

Technical Product Data

Property	Unit	Data	Audit
Density at 20 °C	kg/m³	846,0	EN ISO 12185
Colour		gelb	DIN 51757
Viscosity at 100 °C	mm²/s	7,2	DIN 51562-1
Viscosity at 40 °C	mm²/s	37,2	DIN 51562-1
Viscosity Index VI		162	DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	7900	ASTM D2983
Pourpoint	°C	-66	DIN ISO 3016
Seq. I at 24 °C	ml/ml	0/0	ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892
VKA Four Ball Test (Wear)	mm	0,34	DIN EN ISO 20623
VKA Four Ball Test (EP Extreme Pressure)	N	2200 / 2400	DIN EN ISO 20623
	mm²/s	35,84	DIN EN ISO 20844
	mm²/s	6,619	DIN EN ISO 20844
Copper Strip Test at 150 °C		1a	ASTM D130
Flashpoint	°C	240	DIN EN ISO 2592
Noack Volatility	% M/M	6,9	ASTM D5800
